Lift Table Equipment

Professional Guardian, and Roto-Max solutions from John Maye Company. Advanced System equipment for efficient packaging operations.

SOCO Case Erectors
Scroll to explore

Download Lift Table Equipment Brochure

Thank you! Your brochure request has been submitted successfully. Check your email for the download link.
We collect this information to provide you with the most relevant product details and to follow up with additional resources that may benefit your operations.
Please enter a valid business email address
Please enter a valid phone number
Lift Tables Products Section

Our Range of Lift Tables

Filter Products

Brand

Category

Power Source

Capacity Range (lbs)

220 4400

Special Features

Need custom solutions?

Talk to our experts for tailored lift table guidance and specifications.

Talk to an expert

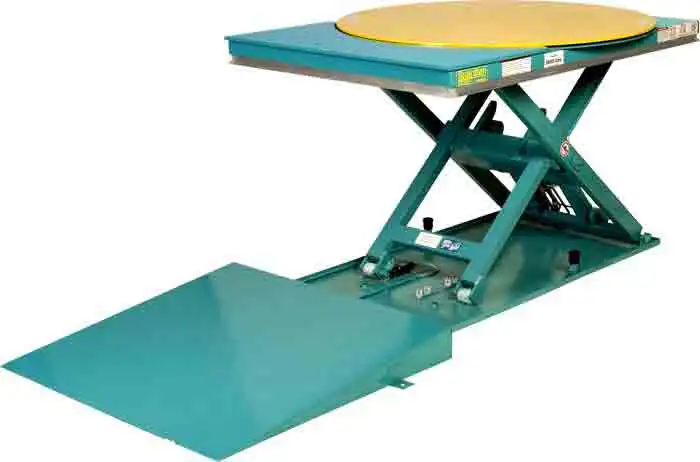

Guardian Lift-N-Spin
Guardian

Lift-N-Spin

  • 360° rotating top with 4.25" lowered height
  • 2,000 lbs capacity, raises to 35" height
  • Auto-transition plate for smooth pallet loading

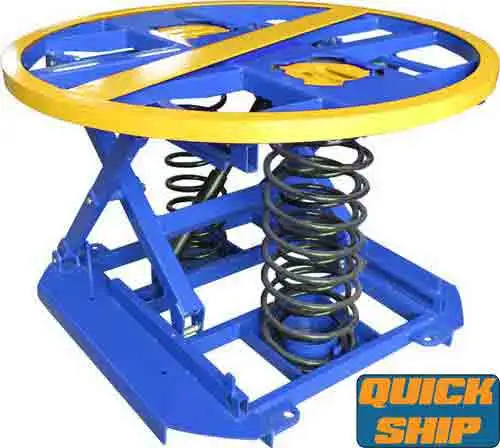

LPSL Spring Level Loader
LPSL

Spring Level Loader

  • Spring-powered operation, no electricity required
  • 440-4,400 lbs capacity with 360° rotation
  • Automatic height adjustment as load changes

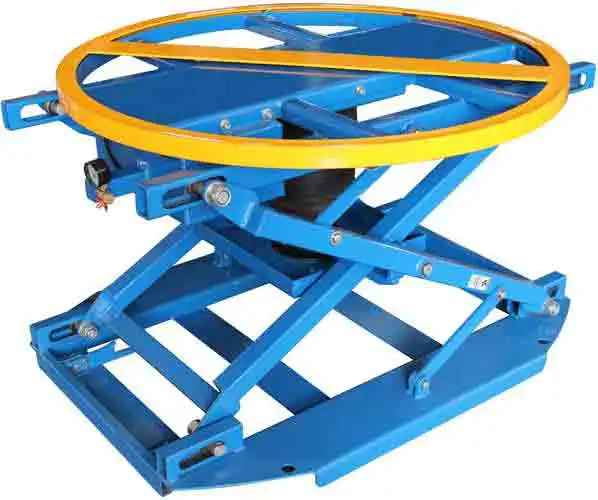

LPSL-AIR Level Loader
LPSL

Air Bag Level Loader

  • Air bag operation for smooth height adjustment
  • 220-4,400 lbs capacity, 10.4" to 28" height
  • Pressure regulating knob for customization

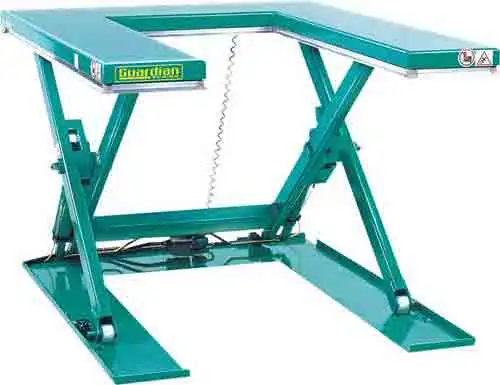

U-Lift Table
Guardian

U-Lift Table

  • Ground entry design for open bottom pallets
  • 2,200-3,300 lbs capacity with 3.13" lowered height
  • Compatible with 21" wide pallet trucks

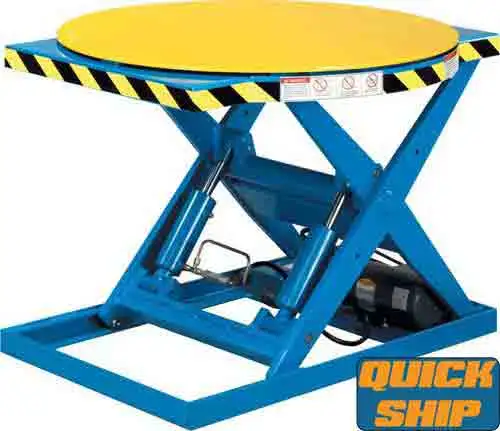

Roto-Max Work Positioner
Roto-Max

Work Positioner

  • Electric hydraulic with 43" diameter rotating top
  • 2,500-3,500 lbs capacity, 6.5" to 32.5" height
  • High performance 1.5-2 HP motor system

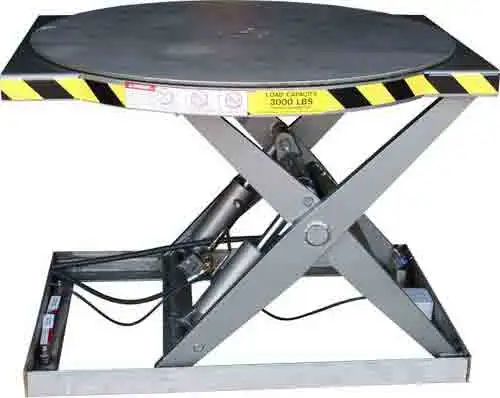

Semi-Stainless Roto-Max SS
Roto-Max

Semi-Stainless SS

  • Stainless steel construction for hygiene applications
  • 2,500-3,500 lbs capacity with 360° rotation
  • Water resistant remote power unit

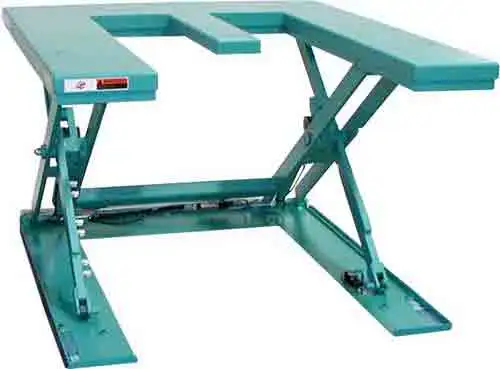

E-Lift Table
Guardian

E-Lift Table

  • Center opening design for 27" wide pallet trucks
  • 2,200 lbs capacity with 3.13" lowered height
  • Added center support prevents pallet deflection

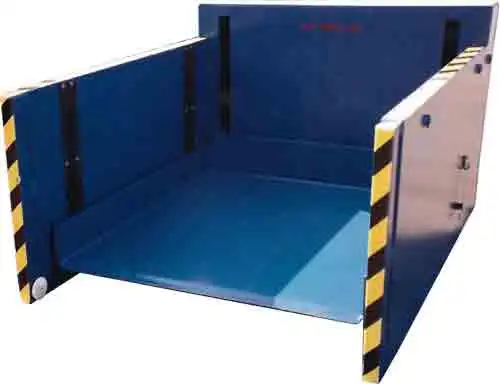

Level Lifter
Level-Lifter

Level Lifter

  • Ultra-low 0.5" profile with 4-point lift system
  • 2,500-4,000 lbs capacity, up to 30" height
  • Photo eye safety system and beveled platform

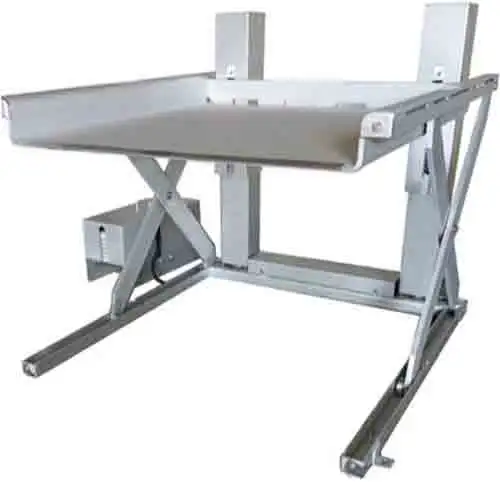

Stainless Steel SXTLP
SXTLP

Stainless Steel SXTLP

  • USDA approved T304 stainless steel construction
  • 2,500 lbs capacity with 0.5" to 37" height
  • Ideal for food processing and pharmaceutical use

Filter Products

Brand

Category

Power Source

Capacity Range (lbs)

220 4400

Special Features

Frequently Asked Questions

Get answers to common questions about our lift tables, work positioners, and material handling solutions including Guardian Lift-N-Spin, Spring Level Loaders, U-Lift Tables, and Roto-Max systems.

Our lift tables offer a wide range of capacities from 220 lbs up to 4,400 lbs. The Guardian Lift-N-Spin handles 2,000 lbs, Spring Level Loaders accommodate 440-4,400 lbs, U-Lift Tables support 2,200-3,300 lbs, and Roto-Max work positioners handle 2,500-3,500 lbs, with various hydraulic models offering customizable capacity options.
Not all models require continuous power. The LPSL Spring Level Loader operates entirely on spring energy with no electrical requirements, while the LPSL-AIR can be disconnected after inflation. Most hydraulic models like the Guardian series and Roto-Max use standard 115V power, with some offering 230/460V options.
Several models feature full 360° rotation including the Guardian Lift-N-Spin, Spring Level Loader (LPSL), LPSL-AIR, and all Roto-Max work positioners. This eliminates the need to walk around pallets and provides complete access to all sides of your load for improved ergonomics.
Yes, we offer USDA-approved stainless steel models including the SXTLP series with T304 construction and passivated finish, plus stainless steel options for Spring Level Loaders and Semi-Stainless Roto-Max models designed for washdown environments and sanitary applications.
All Guardian series models include aluminum perimeter safety bars, scissor gap clearances, check valves, and meet both ANSI and European safety standards. The Level Lifter features photo eye systems, the E-Lift includes hydraulic velocity fuses, and all models have mechanical maintenance blocks for safe servicing.
Yes, our U-Lift Tables work with 21" wide pallet jacks, the E-Lift features a 28.9" center opening for 27" pallet trucks, and the Guardian Lift-N-Spin has an ultra-low 4.25" profile. Many models include fork pockets or ultra-low profiles for easy pallet truck access.
Yes, we provide comprehensive installation support, owner's manuals, technical documentation, and access to our dealer network for local service. Many models like the Level Lifter and Spring Level Loader are designed for simple installation without requiring floor pits or complex setup procedures.
Our ground entry models like the U-Lift, E-Lift, Level Lifter, and SXTLP eliminate the need for expensive floor pit installation. The Level Lifter features a revolutionary 0.5" lowered height with 4-point lift system, while the U-Lift and E-Lift provide specialized designs for different pallet truck widths.
