Conveyor Systems

Professional Omni Gravity Conveyor, and CDLR solutions from John Maye Company. Advanced SOCO System equipment for efficient packaging operations.

SOCO Case Erectors
Scroll to explore

Download Conveyor Systems Brochure

Thank you! Your brochure request has been submitted successfully. Check your email for the download link.

We'll send you our comprehensive product brochure via email. Your information helps us provide you with relevant technical specifications and industry updates.

Conveyor Products Section

Our Range ofConveyor Systems

Filter Products

Product Type

Roller Material

Applications

Width Range (inches)

7.931.5

Special Features

Need custom solutions?

Talk to our experts for tailored conveyor system guidance and specifications.

Talk to an expert

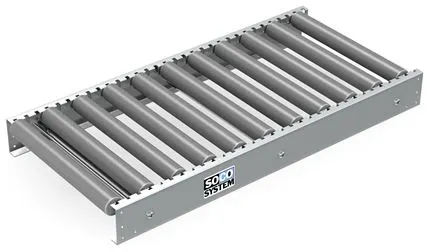

Roller conveyors with Ø 1 7/8 plastic rollers

Roller Conveyors with Ø 1 7/8" Plastic Rollers

  • Smooth-running operation with modular design
  • Multiple axle pitch options: 2 3/8", 3 1/2", 4 3/4"
  • Load capacity: 22 lbs per roller, 165 lbs per meter

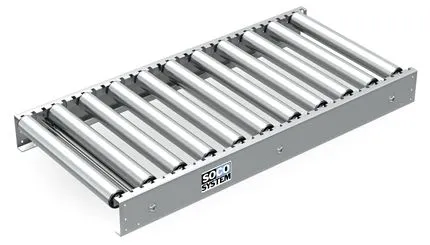

Roller conveyors with Ø 1 7/8 steel rollers

Heavy-Duty Steel Roller Conveyors

  • Heavy-duty Ø 1 7/8" steel rollers for maximum durability
  • Load capacity: 22 lbs per roller, 364 lbs per meter
  • Electro-galvanized steel construction

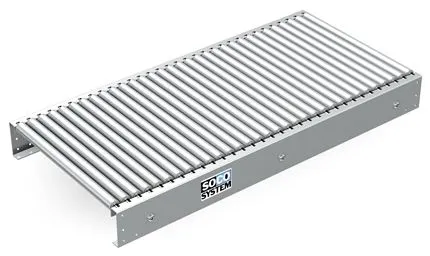

Roller conveyors with Ø 1 1/8 aluminum rollers

Precision Aluminum Roller Conveyors

  • Ø 1 1/8" anodized aluminum rollers with 1 1/8" axle pitch
  • Perfect for delicate and uneven items
  • Load capacity: 22 lbs per roller, 165 lbs per meter

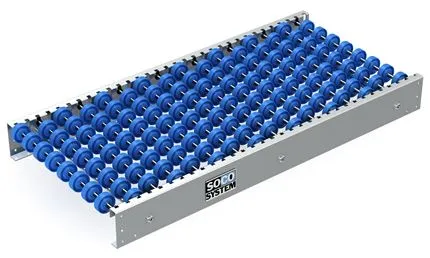

Wheel conveyors with double number of wheels

Double-Wheel Conveyors

  • Ø 1 7/8" wheel axles with double number of wheels per axle
  • Enhanced load distribution and stability
  • Double-row steel ball bearings for smooth operation

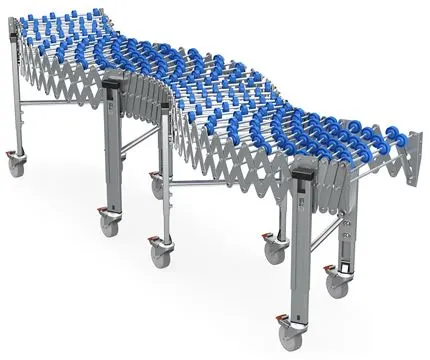

Flexi conveyors with Ø 1 7/8 wheel axles

Flexible Wheel Conveyors

  • Bendable design adapts to workspace requirements
  • Variable length from 59 7/8" to 210 5/8"
  • Perfect for small and awkward items
Flexi conveyors with 3-parted Ø 1 7/8 plastic rollers

Flexible Roller Conveyors

  • 3-parted Ø 1 7/8" plastic rollers for flexibility
  • Length range: 88 5/8" to 210 5/8"
  • Load capacity: 22 lb per axle set
Belt conveyors with roller bedding

Belt Conveyors with Roller Bedding

  • Recommended for lengths over 16.5 ft
  • Multiple width options from 7 7/8" to 23 5/8"
  • Dual speed options: 10 ft/min and 20 ft/min
Belt conveyors with plate bedding

Belt Conveyors with Plate Bedding

  • Ideal for short conveyors and light items
  • Standard and grooved plate bedding options
  • Dual speed options: 10 or 20 ft/min
Belt conveyors with booster - roller bedding

Belt Conveyors with Booster - Roller Bedding

  • Gentle transport up or down with roller bedding
  • Inclined and horizontal combination
  • Customizable lengths up to 33 feet

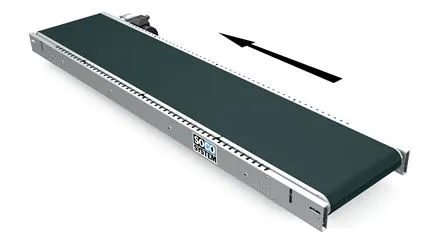

Belt conveyors with booster - plate bedding

Belt Conveyors with Booster - Plate Bedding

  • Gentle transport up or down with plate bedding
  • Plate bedding with grooves for enhanced stability
  • Multiple width and length configurations

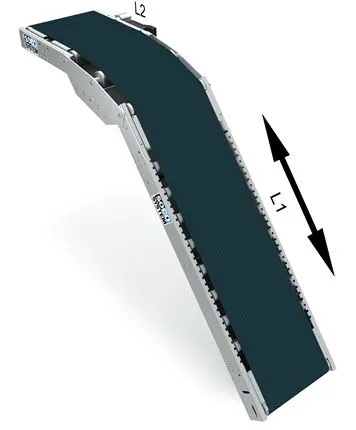

Belt conveyors with triplex angles - roller bedding

Belt Conveyors with Triplex Angles - Roller Bedding

  • Smooth transitions for delicate items
  • Triplex angle design eliminates sudden transitions
  • Available in smooth, grip, and food-grade belts
Belt conveyors with triplex angles - plate bedding

Belt Conveyors with Triplex Angles - Plate Bedding

  • Smooth transitions with plate bedding support
  • Perfect for items requiring gentle handling
  • Customizable inclined and horizontal combinations

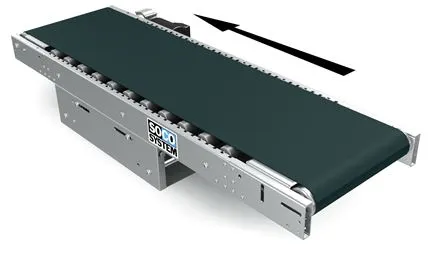

Belt conveyors with submounted tension section

Belt Conveyors with Submounted Drive

  • Space-saving submounted drive technology
  • Multiple bedding options: rollers, plate, grooved plate
  • Compact design with 13¾" minimum height
Smooth belt for belt conveyors

Smooth Belt for Belt Conveyors

  • Horizontal transport and inclines up to 10°
  • Available with or without guide profiles
  • Five width options from 7 7/8" to 23 5/8"
Grip belt for belt conveyors

Grip Belt for Belt Conveyors

  • Secure inclined transport for 10º to 28º angles
  • Guide profile options for enhanced stability
  • Professional-grade grip surface

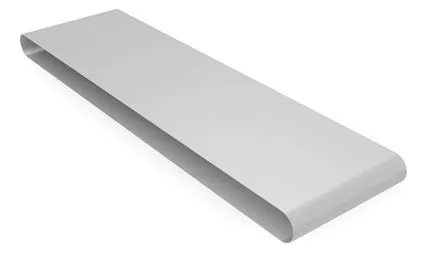

Low friction conveyor belt

Low Friction Conveyor Belt

  • Advanced low friction technology
  • Optimized for textile industry applications
  • Enables transverse product conveying

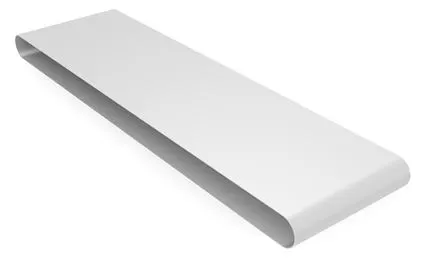

Low friction conveyor belt pro

Low Friction Conveyor Belt Pro

  • Enhanced low friction material
  • Continuous operation with stationary products
  • Multiple size configurations available
Food conveyor belt

Food Conveyor Belt

  • Food-grade hygienic design
  • Suitable for food and pharmaceutical applications
  • Multiple width and length configurations

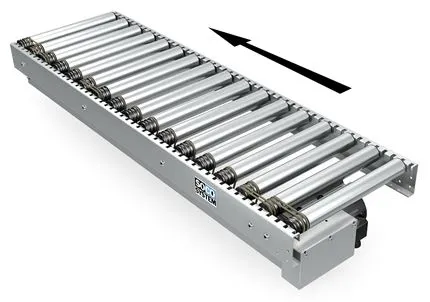

Driven roller conveyors with Ø 1 7/8 plastic rollers

Driven Roller Conveyors - Plastic Rollers

  • Ø 1 7/8" high-quality plastic rollers
  • Available drive sections for left and right configurations
  • Modular design for flexible system layouts
Driven steel roller conveyors with Ø 1 7/8 steel rollers

Driven Steel Roller Conveyors

  • Industrial-grade Ø 1 7/8" steel rollers
  • Dual drive configurations available
  • Scalable modular system design

Filter Products

Product Type

Roller Material

Applications

Width Range (inches)

7.931.5

Special Features

Frequently Asked Questions

Get answers to common questions about our conveyor systems, roller conveyors, belt conveyors, and material handling solutions.

Our conveyors feature various roller sizes including Ø 1 7/8" plastic rollers, Ø 1 7/8" steel rollers, and Ø 1 1/8" aluminum rollers. We offer multiple axle pitch options (1 1/8", 2 3/8", 3 1/2", 4 3/4") and configurations including single wheels, double wheels, and flexible designs to meet your specific application needs.
Roller bedding is recommended for belt conveyors over 16.5 feet and provides smooth belt support with minimal friction. Plate bedding is ideal for shorter conveyors and light items, while grooved plate bedding offers side loading capability and enhanced belt tracking for specific applications.
Yes, our conveyors offer extensive customization options. Widths range from 7 7/8" to 31 1/2" depending on the model, and lengths can be configured from 9 7/8" up to 393 3/4". Flexi conveyors offer variable lengths from 59 7/8" to 210 5/8", and custom lengths are available for many models.
We offer smooth belts for horizontal transport and inclines up to 10°, grip belts for steeper inclines (10°-28°), food-grade belts for hygiene-sensitive applications, and low friction belts for transverse conveying and queuing applications. Guide profile options are available for enhanced belt stability.
Yes, we offer stainless steel construction options for food-grade and pharmaceutical applications. This includes stainless steel roller conveyors, stainless steel ball bearings, and food-grade conveyor belts that meet hygiene standards for direct food contact and washdown environments.
Load capacities vary by model: plastic roller conveyors typically handle 22 lbs per roller (165 lbs per meter), steel roller conveyors can handle up to 364 lbs per meter, and aluminum roller conveyors support 165 lbs per meter. Always distribute loads evenly across multiple rollers for optimal performance.
Yes, we provide comprehensive installation support including video tutorials, detailed mounting guides, technical documentation, and access to our engineering team. We also offer system design consultation, custom configuration assistance, and ongoing technical support for optimal system performance.
