Material handling and ergonomics are critical in manufacturing, warehousing, and industrial operations. Lift tables play a vital role in safely raising, lowering, and positioning heavy loads for production efficiency and worker safety.
Two popular types dominate the market: hydraulic lift tables and pneumatic lift tables. While both perform the same basic function, their mechanisms, applications, and cost structures differ significantly.
This guide compares the top hydraulic lift tables vs. pneumatic lift tables across specifications, advantages, and best-use scenarios so you can make an informed decision.
Key Takeaways:
- Hydraulic lift tables: are ideal for heavy-duty applications requiring high lifting capacity, smooth height control, and durability.
- Pneumatic lift tables are best for clean, low-maintenance environments with lighter loads and fast operation.
- Top hydraulic models include HLT-2000, HLT-5000, and HLT-8000, while pneumatic options include PLT-100, PLT-300, and PLT-500.
- Consider op hydraulic lift tables vs. pneumatic lift tables for load weight, workplace environment, maintenance capacity, and budget.
What is a Hydraulic Lift Table?
A hydraulic lift table uses hydraulic cylinders filled with fluid to raise and lower platforms. They can be powered manually, electrically, or via an air-hydraulic combination.
Depending on the model, these tables can handle loads ranging from 220 lbs to over 4,400 lbs, with precise height adjustment often reaching 2–3 meters.
The fluid pressure generates smooth, controlled lifting, making these tables ideal for heavy machinery positioning in manufacturing, assembly lines with frequent lifting and lowering, and loading or unloading trucks and storage platforms.

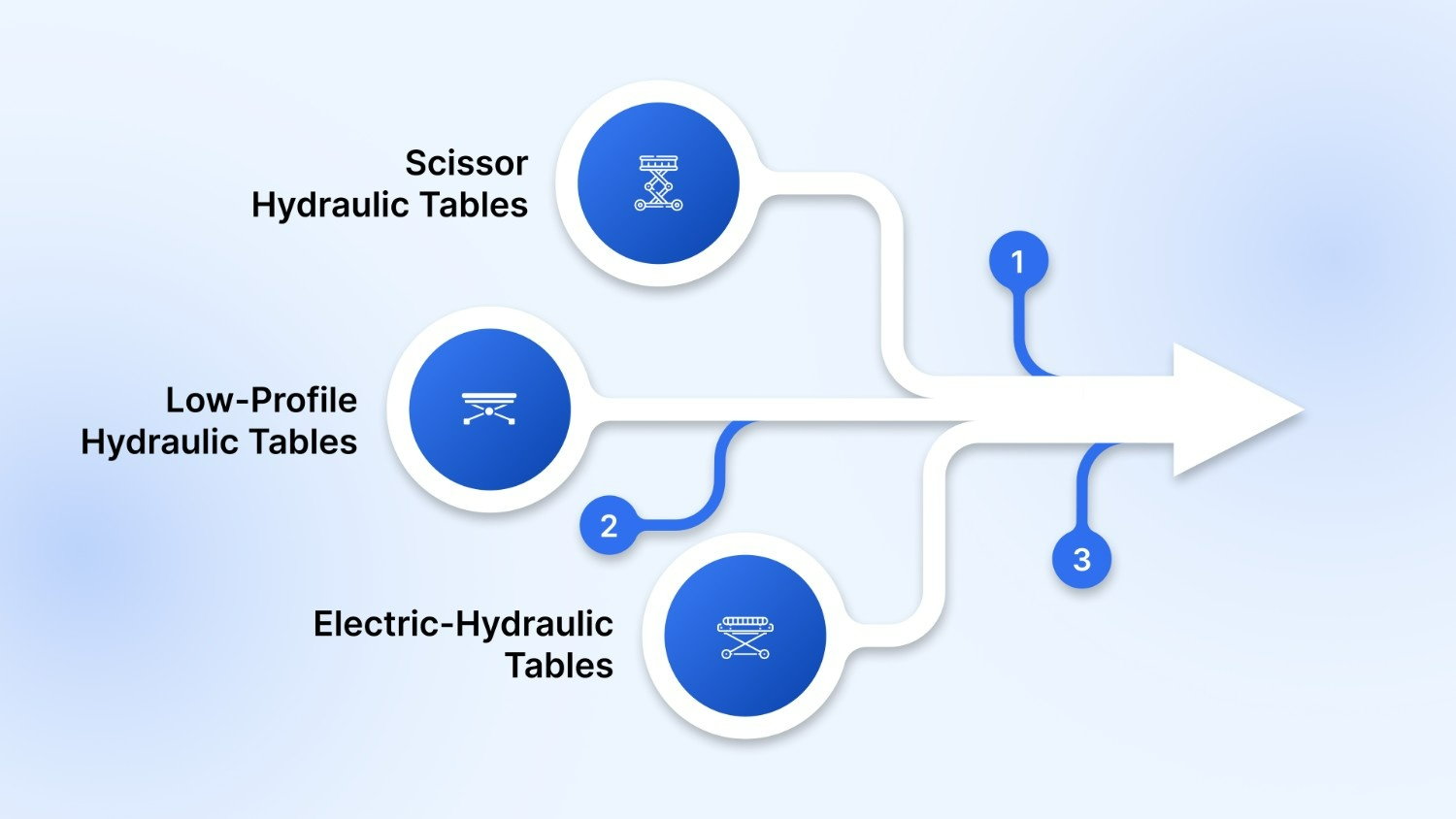

Types of Hydraulic Lift Tables
- Scissor Hydraulic Tables: Traditional design using one or more scissor mechanisms for vertical lifting. Ideal for heavy industrial loads.
- Low-Profile Hydraulic Tables: Compact design for tight spaces, perfect for small workstations.
- Electric-Hydraulic Tables: Combines hydraulic power with electric motors for automated lifting cycles in high-volume operations.
Equipment Choices for Hydraulic Lift Tables
To help you select the right lift table for your operation, here’s an overview of our range of hydraulic lift tables:
Hydraulic lift tables provide stable and precise lifting for heavy or bulky loads. At John Maye Company, our industrial lift tables are ideal for industrial warehouses, manufacturing floors, and high-volume operations, offering efficient, safe, and durable material handling for a variety of load types.

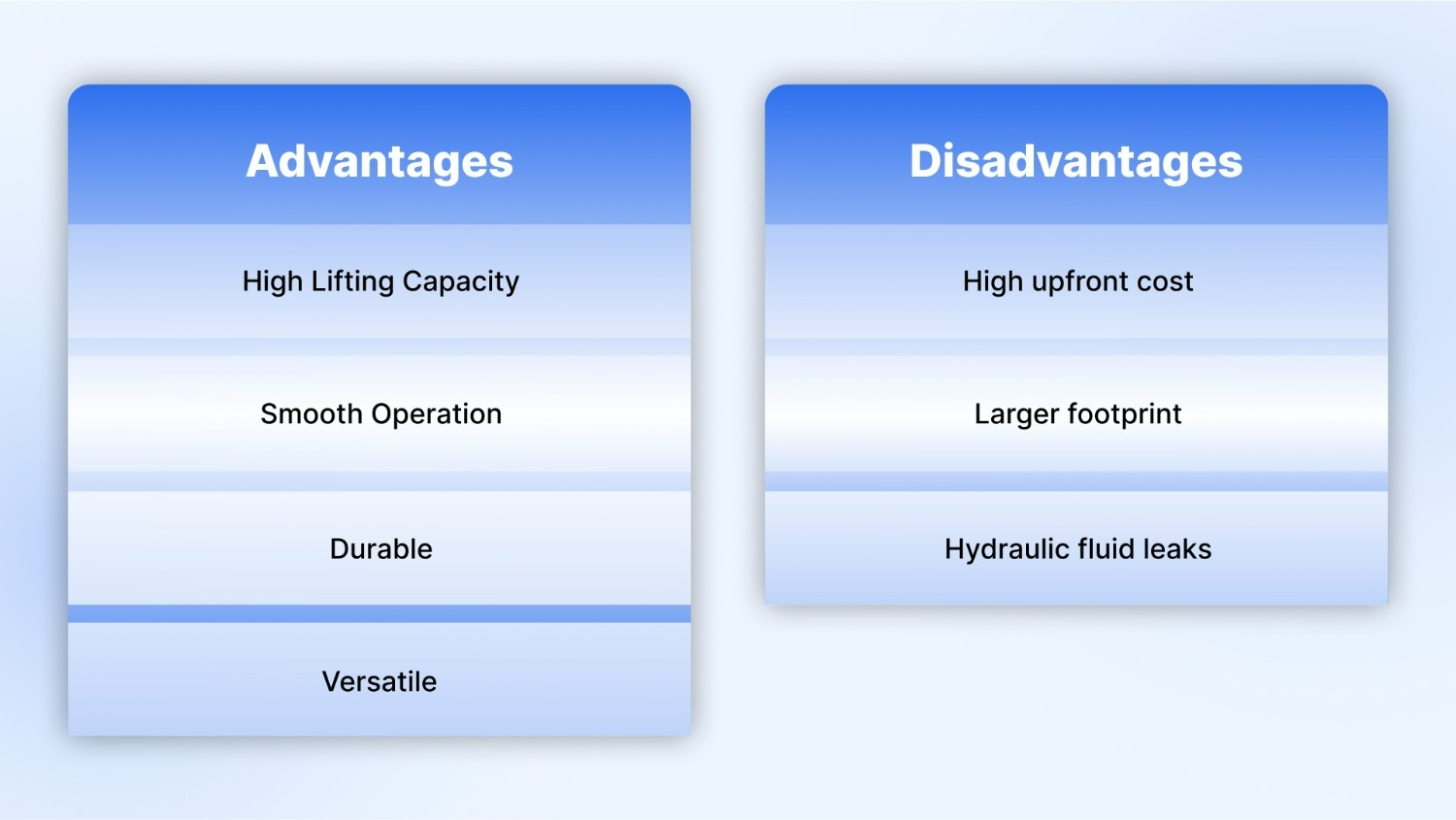

Advantages of Hydraulic Lift Tables:
- High Lifting Capacity: Supports very heavy loads efficiently.
- Smooth Operation: Controlled lifting and lowering reduce shock and vibration
- Durable: Long lifespan with proper maintenance.
- Versatile: Suitable for workshops, factories, and warehouses requiring precise load positioning.
Disadvantages of Hydraulic Lift Tables:
- Higher upfront cost and routine maintenance required.
- Larger footprint compared to pneumatic tables.
- Potential risk of hydraulic fluid leaks in sensitive environments.
For professional support in choosing the right lift table for your facility, John Maye Company provides expert consultation, a complete range of hydraulic lift tables, and customized industrial packaging supplies to ensure safe handling, reduce operator fatigue, and optimize workflow efficiency. Contact here
Hydraulic lift tables are perfect for heavy, bulky, or irregular loads requiring precise and stable lifting, while pneumatic lift tables are ideal for lighter, delicate, or sensitive items, offering smooth, low-maintenance operation in controlled environments.
What is a Pneumatic Lift Table?
Pneumatic lift tables rely on compressed air to raise and lower platforms. Instead of hydraulic fluid, they use air cylinders or air bladders, making them cleaner and often faster in operation.
These tables are especially suited for environments where fluid leaks must be avoided, such as food and pharmaceutical industries, cleanrooms, laboratories, and light assembly operations, providing smooth and precise lifting while maintaining a hygienic, contamination-free workspace.

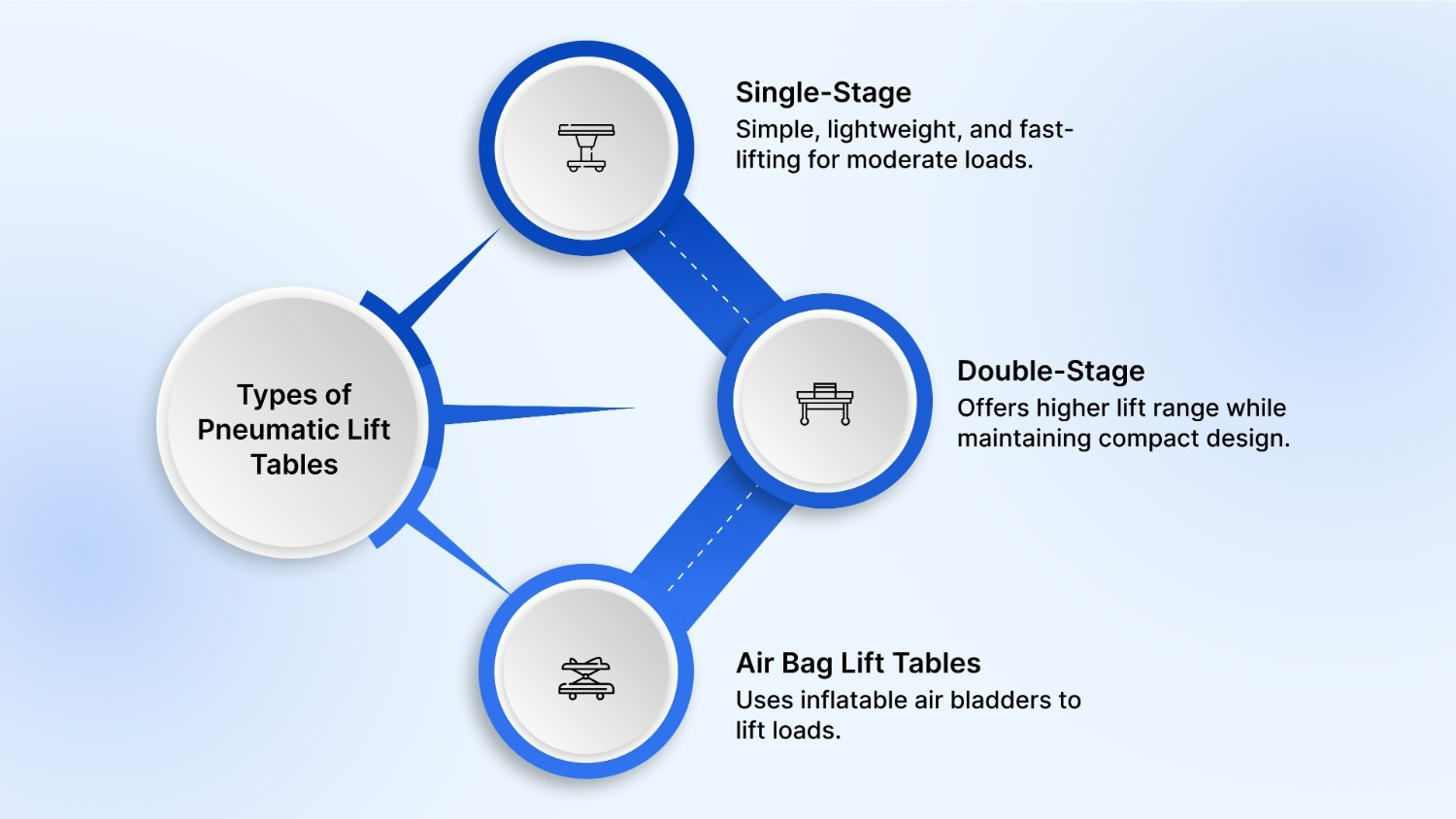

Types of Pneumatic Lift Tables:
- Single-Stage Pneumatic Tables: Simple, lightweight, and fast-lifting for moderate loads.
- Double-Stage Pneumatic Tables: Offers higher lift range while maintaining compact design.
- Air Bag Lift Tables: Uses inflatable air bladders to lift loads, ideal for delicate handling and clean environments.
Top Pneumatic Lift Tables Available:
Below is an overview of key pneumatic lift table models, highlighting their features, capacities, and height ranges to help you choose the right solution for your operation.
Pneumatic lift tables provide smooth and precise lifting for light to medium loads. At John Maye Company, our pneumatic lift table solutions are perfect for cleanrooms, laboratories, food processing, and assembly operations, offering low-maintenance, hygienic, and efficient material handling that keeps your workflow safe and consistent.

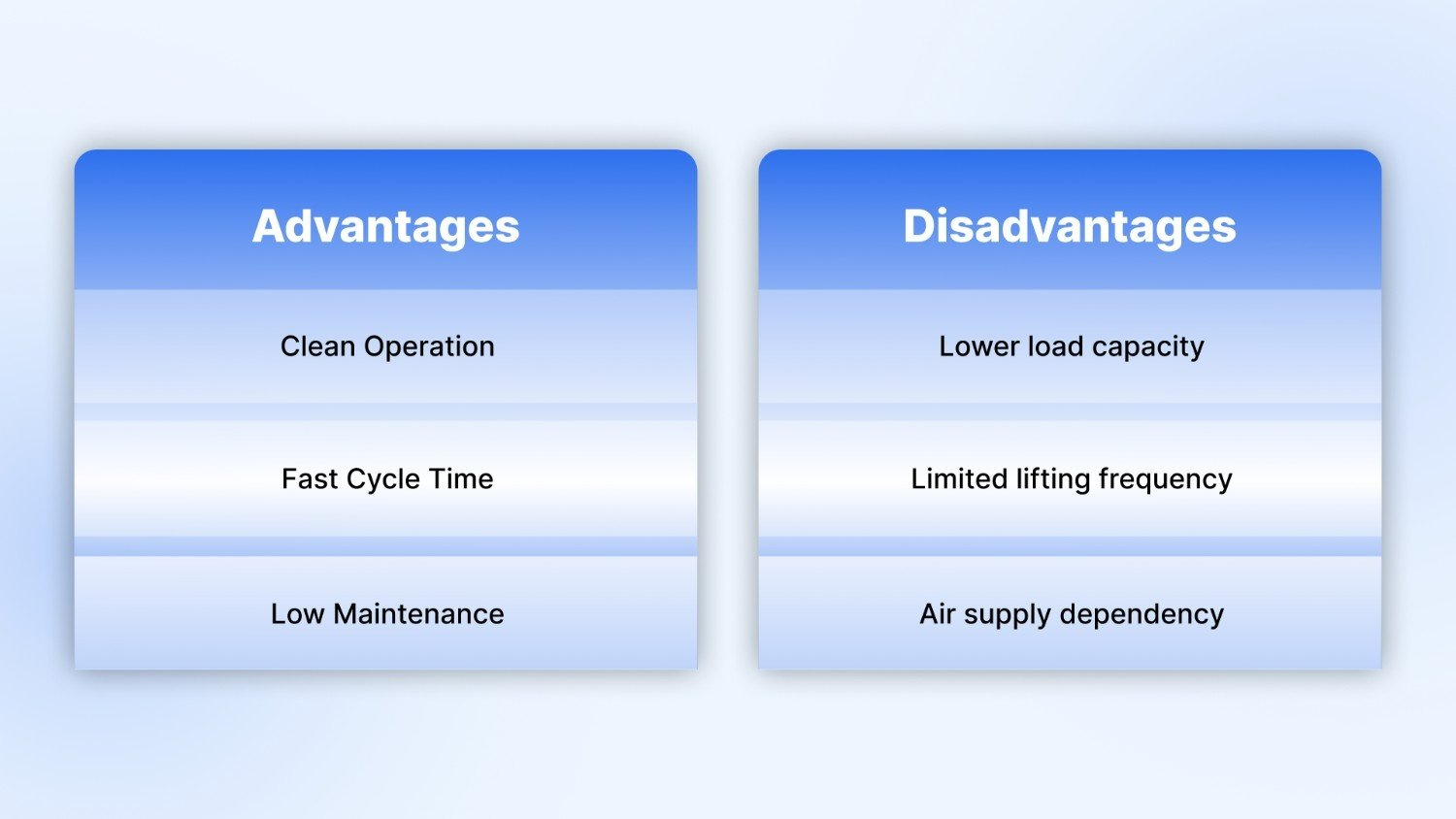

Advantages of Pneumatic Lift Tables:
- Clean Operation: No hydraulic fluid; reduces contamination risk.
- Fast Cycle Time: Quick lifting and lowering for repetitive tasks.
- Low Maintenance: Minimal servicing required compared to hydraulic systems.
Disadvantages of Pneumatic Lift Tables:
- Limited heavy-load capacity compared to hydraulic tables.
- Less suitable for continuous, high-volume lifting operations.
- Compressed air supply required, adding infrastructure considerations.
Before making a decision, it’s important to understand how hydraulic and pneumatic lift tables differ in operation, capacity, and application.
Hydraulic vs. Pneumatic Lift Tables: Key Differences
Both hydraulic and pneumatic lift tables are highly effective for elevating loads, but each offers distinct advantages based on your operational needs. Below is a detailed breakdown of their differences:
Industrial Insight:
Adopt hydraulic and pneumatic lift tables as part of a strategic material handling plan that drives measurable ROI.
Align table selection with production goals, pallet wrapping equipment, load types, and operational priorities to reduce downtime, optimize throughput, and improve overall facility efficiency while minimizing labor costs and safety risks
Also Read: Essential Tips for Packaging Machine Maintenance

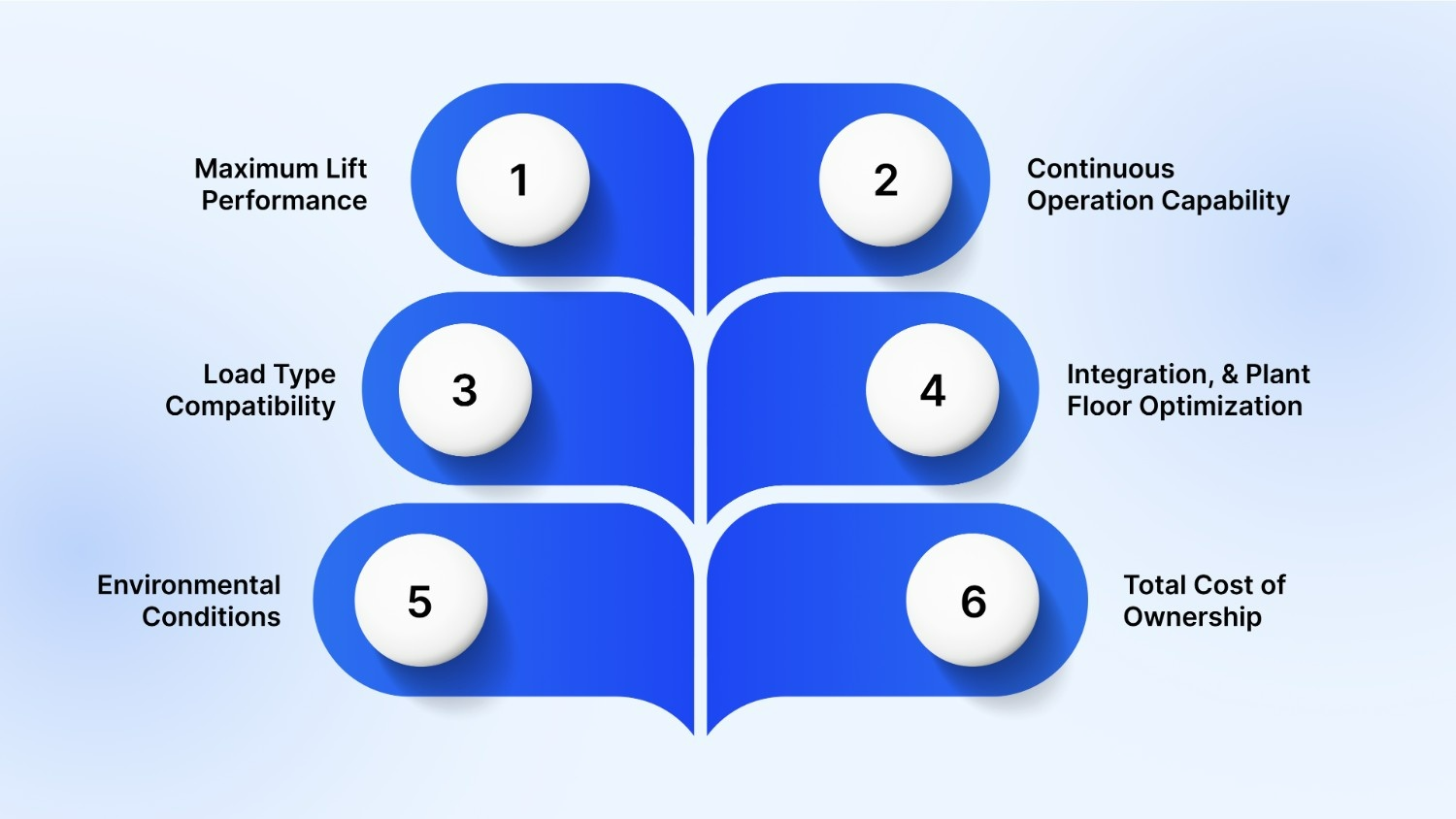

How to Select the Right Lift Table for Industrial Operations?
In industrial and manufacturing environments, choosing the right lift table goes beyond price; it directly impacts workflow efficiency, worker safety, and load handling performance.
The right lift table ensures smooth material handling, reduces operator fatigue, and optimizes production cycles, whether you’re managing heavy machinery, delicate components, or high-volume assembly lines.
Below are key factors to guide your decision.
1. Rated Load Capacity and Maximum Lift Performance
- Hydraulic lift tables handle heavy loads with precision, supporting weights from 2,000 lbs to over 4,000 lbs. Ideal for industrial warehouses, manufacturing lines, and high-volume material handling.
- Pneumatic lift tables are designed for lighter to medium loads, up to 4,400 lbs, and are suited for delicate items, food processing, or pharmaceutical applications where smooth lifting is critical.
2. Duty Cycle and Continuous Operation Capability
- Hydraulic tables are built for continuous, heavy-duty use, maintaining performance under repetitive cycles and heavy load demands.
- Pneumatic tables work best in moderate-use environments where gentle lifting, speed, and precision are important.
3. Load Type Compatibility and Handling Requirements
- Hydraulic systems excel with variable or irregular load sizes, offering stability and reliable lifting for bulky, dense, or uneven pallets.
- Pneumatic systems provide smooth, controlled lifting for sensitive or uniform loads, minimizing risk of damage or contamination.
4. Footprint, Integration, and Plant Floor Optimization
- Hydraulic lift tables may require a larger footprint due to their heavier frames or rotating tops but deliver robust performance for industrial floors.
- Pneumatic lift tables typically have low-profile, compact designs that integrate easily into tight spaces, assembly lines, or cleanroom environments.
5. Environmental Conditions and Operational Suitability
- Hydraulic tables are suitable for standard industrial environments, tolerating rugged conditions, repeated use, and higher load variability.
- Pneumatic tables are ideal for clean, controlled environments where leak-free operation and minimal maintenance are critical, such as food, beverage, and pharmaceutical facilities.
6. Total Cost of Ownership and Maintenance Considerations
- Hydraulic tables have a higher upfront cost and require routine maintenance of hydraulic systems, but deliver long-term reliability and performance.
- Pneumatic tables are more cost-effective initially, with minimal maintenance and no fluid handling, making them easier to operate in regulated or sensitive environments.
Pro Tip: Many facilities optimize their operations by combining both types using hydraulic tables for heavy-duty industrial tasks and pneumatic tables for lighter or sensitive operations. This approach maximizes efficiency, safety, and ROI across the facility.
Also Read: How to Improve Packaging Efficiency and Productivity.
Why Choose John Maye for Lift Table Solutions?
At John Maye Company, we do more than supply lift tables. We provide strategic solutions that optimize your material handling processes, improve operator safety, and enhance workflow efficiency.
From heavy-duty hydraulic lift tables for industrial warehouses to pneumatic lift tables for delicate or hygienic operations, we help you select equipment that fits your facility’s operational and safety requirements.
If you are deciding between hydraulic and pneumatic lift tables, our team can review:
- From heavy pallets and machinery to sensitive or fragile items
- Frequency of use, continuous or moderate cycles, and peak load times
- Floor space, footprint requirements, and integration with conveyors or assembly lines
- Cleanroom, food-grade, pharmaceutical, or rugged industrial settings
- Short-term purchase, long-term maintenance, and total cost of ownership
- Recommendations on rotation, tilt, and lifting heights to reduce manual handling and improve safety
You may also want to explore our insights on Belt vs. Roller Conveyors, which explains how choosing the right equipment impacts operational efficiency, safety, and cost-effectiveness.
Conclusion
Selecting between hydraulic and pneumatic lift tables depends on your operational priorities and strategic goals:
- Hydraulic lift tables provide high-load capacity, durability, and reliable performance for industrial and high-volume operations.
- Pneumatic lift tables deliver smooth, precise, and low-maintenance lifting for sensitive, uniform, or hygienic loads.
At John Maye Company, we deliver tailored solutions that align with your production strategy, safety standards, and budget. Our team ensures you choose the right lift table for maximum efficiency and long-term operational success.
For expert guidance on the best lift table solution for your facility, contact our specialists today.
FAQs
1. Which lift table is best for heavy loads?
Hydraulic lift tables are ideal for heavy-duty loads, offering stability, precise lifting, and robust performance for industrial warehouses and manufacturing floors.
2. Can pneumatic lift tables handle delicate or sensitive items?
Yes. Pneumatic lift tables provide smooth, controlled lifting, making them perfect for fragile, uniform, or hygienic loads in food, pharmaceutical, or electronics environments.
3. Are hydraulic lift tables easy to maintain?
Hydraulic tables require periodic maintenance of hydraulic systems, hoses, and fluid levels, but they are durable and built for long-term heavy use.
4. Can hydraulic and pneumatic tables be used together?
Yes. Hybrid setups allow heavy items to be handled by hydraulic tables while sensitive or light items use pneumatic tables, improving workflow efficiency and safety.
5. Which lift table type is more cost-effective?
Pneumatic lift tables have lower upfront costs and minimal maintenance, ideal for moderate workloads. Hydraulic tables involve higher initial investment but deliver long-term reliability for high-volume operations.
6. Are lift tables suitable for automated workflows?
Yes. Both hydraulic and pneumatic lift tables can be integrated with conveyors, assembly lines, or robotic systems to streamline material handling and reduce manual labor.
