Understanding Plastic Wrap Gauge and Thickness Guide

Choosing the right gauge size of plastic wrap can seem like a small detail, but it can significantly impact the safety of your products during transport. The key to making an informed decision lies in understanding a single concept: gauge.

‍

This guide will cover every important detail like what gauge is, explain how it relates to thickness, and help you select the ideal wrap for your specific needs, ensuring your shipments are secure without wasting materials or money.

Plastic Wrap Gauge and Thickness

‍

In the world of packaging, gauge is a unit of measurement that describes the thickness of plastic wrap. A higher gauge number means a thicker and more durable wrap. While the concept is simple, its implications are crucial. The gauge size of plastic wrap directly affects its tear resistance, puncture strength, and overall ability to protect your products.

‍

Understanding the relationship between different units of thickness is also important. The three most common measurements you’ll encounter are gauge, mils, and microns. They are all used to express the same thing, the thickness of the film, but in different scales.

‍

A mil is equal to one-thousandth of an inch, while a micron is one-millionth of a meter. Gauge is a less standardized unit, but in the stretch wrap industry, 1 gauge is typically equal to 0.254 microns or 0.00001 inches.

‍

Understanding Different Gauge Levels

‍

As a general rule, a higher gauge indicates a thicker plastic wrap with greater resistance to tearing and punctures. This thicker film is better suited for heavy, sharp, or irregularly shaped loads. For instance, a thin wrap might tear when stretched around a pallet with sharp wooden edges, while a thicker, higher-gauge wrap will provide the necessary protection.

‍

Here's a simple breakdown of how these units convert:

‍

• 1 gauge = 0.254 microns
• 1 mil = 100 gauge = 25.4 microns
• 1 micron = 3.937 gauge

‍

Knowing these conversions can help you compare products from different manufacturers who may use different units of measurement.

‍

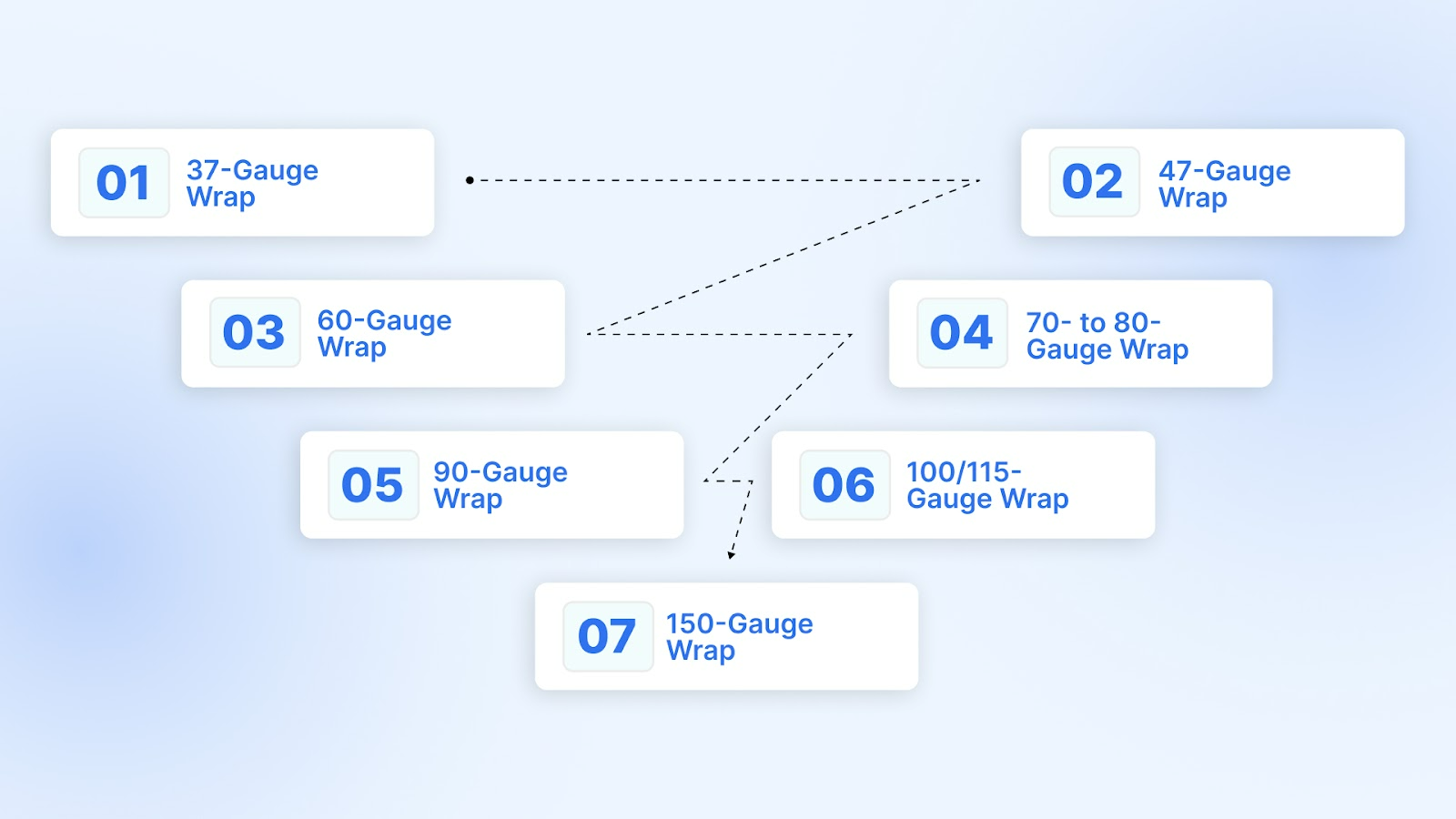

Common Plastic Wrap Gauges

Selecting the right gauge size of plastic wrap depends on the specific characteristics of your load, including its weight, shape, and stability. Here is a breakdown of common gauges and their typical applications:

‍

• 37-Gauge Wrap: This is an excellent choice for light-duty applications. It's often used for hand-wrapping loads that are no heavier than 800 pounds and are relatively stable. Its thinner profile makes it easier to apply and can be more cost-effective for simple bundling.

‍

• 47-Gauge Wrap: This wrap offers impressive strength that is comparable to a traditional 60-gauge wrap. Thanks to advancements in manufacturing, this lightweight film can handle loads up to 1,800 pounds, making it a great option for businesses looking to "downgauge" for material savings.

  • For example: Steelflex Xtreme is a high-performance, multi-layer stretch film engineered for downgauging. It is an ultra-thin yet ultra-strong hand film designed to replace much thicker products, offering exceptional puncture and tear resistance. This versatile film is a great choice for all types of loads, providing a quiet unwind and excellent clarity.

‍

• 60-Gauge Wrap: Considered a standard for many packaging operations, a 60-gauge wrap is a versatile option for loads up to 1,800 pounds. It provides reliable protection and is a good all-around choice for a wide variety of products and pallet types.

‍

• 70- to 80-Gauge Wrap: This gauge range is often considered the industry standard for most general-purpose applications. It offers the strength needed to secure loads up to 2,400 pounds, providing a balance between durability and cost.

  • For example: The Steelflex product line includes a 70-gauge machine film that offers great performance and value. It has a high stretch capacity and consistent load-holding force, making it ideal for standard pallet loads. This film is also known for its excellent puncture resistance and quiet unwind.

‍

• 90-Gauge Wrap: When you need a step up in durability, a 90-gauge wrap is your solution. It’s suitable for heavy-duty applications and can support loads up to 2,600 pounds. This is ideal for heavier products or those with more challenging shapes.

‍

• 100/115-Gauge Wrap: For the heaviest and most demanding loads, a 100- or 115-gauge wrap provides superior durability. It’s designed to handle items up to 3,000 pounds, offering maximum puncture and tear resistance.

  • For example: Steelflex also offers a 115-gauge machine film for everyday use on traditional loads. It's designed for a variety of machine film applications and provides excellent pre-stretch, puncture resistance, and consistent load retention. This film is a good combination of performance and value.

‍

• 150-Gauge Wrap: This is the thickest and strongest option available. It’s reserved for the most challenging applications, such as tall or oddly shaped items with sharp edges, or for loads requiring maximum resistance to tearing and tampering.

‍

Factors Influencing Gauge Selection

‍

Choosing the right gauge is not a one-size-fits-all process. Several factors should be considered to ensure optimal protection and cost-efficiency.

‍

• Load Weight and Appropriate Gauge: The weight of your load is the most significant factor. Heavier loads require a thicker, stronger film to prevent the wrap from stretching or breaking under tension. Using a wrap that is too thin for a heavy load can lead to a pallet collapse, while using one that is too thick for a light load is a waste of money.

‍

• Shape of the Load: The shape of your items also plays a crucial role. Loads with sharp corners, protruding parts, or uneven surfaces require a higher gauge to prevent punctures and tears. For example, a pallet of boxed items is much easier to wrap than a pallet of machinery with exposed gears or sharp edges.

‍

• Specific Product Needs: Consider the nature of your products. Delicate items or electronics may require special types of wrap beyond just a specific gauge. For example, using an anti-static wrap is crucial for protecting electronic components from static discharge.

‍

Cost-Efficiency and Material Usage

‍

Finding the right balance between cost and durability is key part of smart packaging. Many companies are now looking into a strategy called downgauging. This means using a thinner, more advanced film that's just as strong as a thicker, older one. For example, a modern 47-gauge film might work just as well as a traditional 60-gauge film. This lets you use less material and save money without risking damage to your products.

‍

Picking the right gauge helps you cut down on waste and run a tighter operation. Wrapping a load with a film that's too thick costs more and creates extra plastic waste. On the flip side, using a film that's too thin can lead to damaged products, which is far more expensive in the long run.

‍

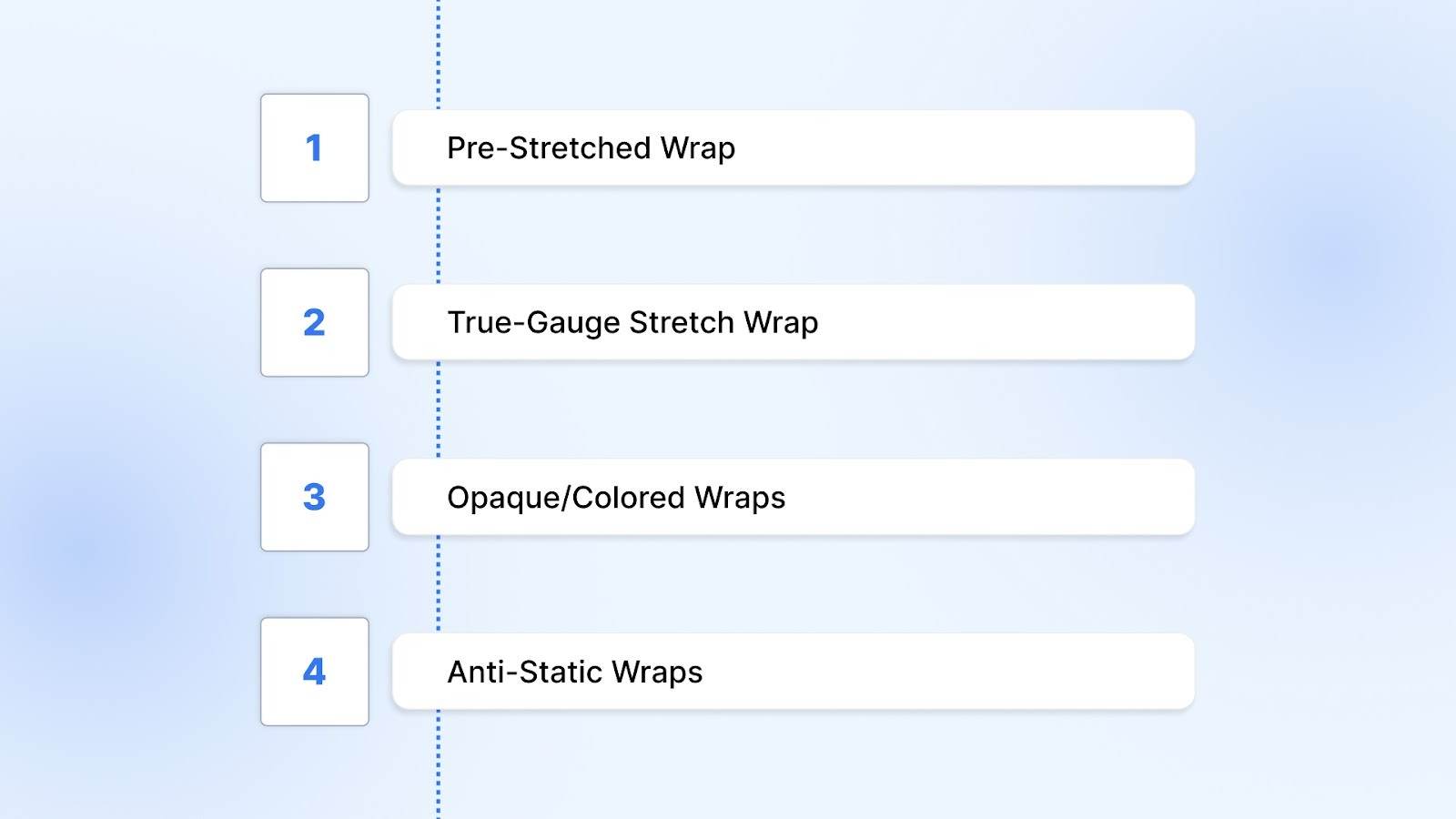

Types of Plastic Wrap

‍

Beyond gauge, there are different types of plastic wrap designed for specific applications:

‍

• Pre-Stretched Wrap: This film is stretched before it’s even rolled up. That means you don't have to pull as hard to apply it, which is great for manual wrapping since it reduces fatigue and still gives you a tight wrap.

‍

• True-Gauge Stretch Wrap: Unlike pre-stretched film, this wrap is meant to be stretched as you apply it to the load. It provides excellent tension and keeps everything held together securely.

‍

• Opaque/Colored Wraps: These films are useful for more than just looks. Opaque wraps hide what you’re shipping, which can help prevent theft. Colored wraps are a simple way to organize shipments by product type, destination, or date.

  • For example: Steelflex Spectrum is a colored stretch film available in a variety of colors, including black, white, red, blue, green, orange, and yellow. It's a great option for product concealment, tamper evidence, and easy product identification in your facility.

‍

• Anti-Static Wraps: Essential for shipping electronics and other sensitive components, these wraps are treated to prevent static electricity from building up, protecting delicate parts from damage. They are a must-have for any business that ships electronics.

  • For example: The PPI stretch film offers high transparency and clarity, which allows for easy barcode reading and visual product identification. It is a five-layer polyethylene cast stretch film with a robust structure, providing excellent barrier properties and strong tear and puncture resistance. These films are made for machine applications and are an economical option for high-value-in-use wrapping.

‍

Equipment Pairing and Efficiency

The right equipment for applying your plastic wrap makes a huge difference. Good machinery can improve safety, create a more consistent wrap, and boost your overall efficiency.

‍

• Consistent Wrapping: A stretch wrapping machine applies film with the same tension every time. This is key for keeping your loads stable and preventing products from shifting or falling during shipping.
• Less Waste: Machines are smart about using just the right amount of film. This precision cuts down on waste from uneven or heavy-handed wrapping, which saves you money on materials.
• Improved Safety: Manual wrapping can be tough on your body. Automated equipment eliminates the need for all that bending and straining, creating a safer environment for your team.
• Increased Productivity: A machine can wrap a pallet in a fraction of the time it takes by hand. This lets your employees focus on other tasks and gets more done in a day.

‍

For example: The PPI stretch film offers high transparency and clarity, which allows for easy barcode reading and visual product identification. It is a five-layer polyethylene cast stretch film with a robust structure, providing excellent barrier properties and strong tear and puncture resistance. These films are made for machine applications and are an economical option for high-value-in-use wrapping.

‍

Conclusion

‍

Choosing the right plastic wrap gauge is a smart decision that affects your budget and keeps your products safe. By understanding what gauge means and thinking about things like a load’s weight and shape, you can pick the best wrap for the job. Using the right gauge not only stops products from getting damaged but also helps you avoid wasting material and money.

‍

Pairing the correct film with efficient equipment is key to a successful packaging process. As a distributor of packaging equipment and supplies, John Maye Company provides a range of products to meet these needs. The company offers a wide variety of stretch wraps and films from leading manufacturers. This selection allows businesses to find the ideal products for their specific applications, from light-duty hand wraps to high-performance machine films.

‍

FAQs

‍

1. How do I choose the right gauge for my products?

To choose the right gauge, you should look at three main things: load weight, load shape, and how stable the load is. Heavier loads or those with sharp corners will need a thicker, higher-gauge film to resist punctures and tears. But if you have a stable, uniform load, a lower-gauge film might be all you need and could save you money.

‍

2. What is downgauging, and why is it beneficial?

Downgauging is a way to use a thinner, high-performance stretch film that's just as strong as a thicker, older one. It's a great strategy because it lowers your material costs, creates less plastic waste, and gives you more film on each roll, which means you don’t have to stop and change rolls as often.

‍

3. Can I use a hand wrap for a machine application?

No, it's not a good idea. Hand wraps and machine wraps are made differently. Hand wraps are designed to be stretched by hand, while machine wraps are made to be stretched by a machine's rollers. Using the wrong kind of film can cause it to break or not wrap the load tightly enough, which can be a real headache.

‍

4. How can I prevent plastic wrap from tearing on sharp corners?

The best way to prevent tears is to use a film with a higher gauge and good puncture resistance. You can also use corner protectors on the pallet. These are like little plastic or cardboard guards that create a cushion between your product and the film, which helps spread out the tension so the wrap doesn't tear.

‍

5. Is there a way to make plastic wrap more sustainable?

Yes, absolutely. Many modern films are engineered to be thinner but just as strong, which means you're using less plastic overall. You can also look for films made with recycled materials or those that are designed to be easily recycled after use. This is a simple way for your company to be more environmentally friendly.
