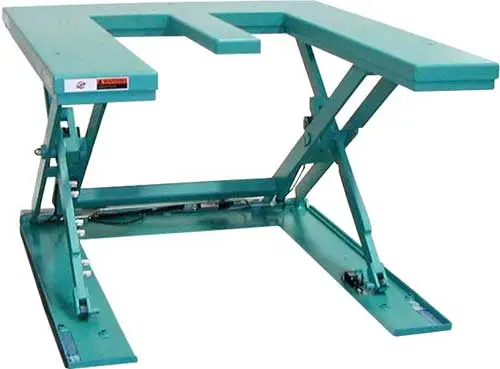

Guardian E-Lift Table
Complete Technical Specifications
Detailed technical specifications for the Guardian E-Lift Table LPBLE-20 model, featuring ultra-low profile design and comprehensive safety systems.
Why Choose the Guardian E-Lift?
Experience revolutionary low-profile lifting with comprehensive safety features, perfect pallet truck compatibility, and reliable performance for demanding operations.
Ultra-Low Profile
The 3.13" lowered height provides exceptional flexibility for tall pallet applications and accommodates operators of varying heights efficiently.
Perfect Pallet Compatibility
The 28.9" center opening is specifically engineered for standard 27" wide pallet trucks, ensuring seamless loading operations.
Anti-Deflection Support System
Unique center support design prevents pallet deflection while maintaining shorter height than outside legs for easy access.
Comprehensive Safety Features
Aluminum perimeter safety bar stops descent upon contact with obstructions while scissor gap clearances prevent trapping.
Quiet Remote Operation
The 1 HP remote power unit delivers highly efficient, quiet operation with external positioning flexibility included.
Ground Entry Capability
Eliminates the need for loading ramps entirely, allowing direct ground-level loading of open bottom pallets seamlessly.
Frequently Asked Questions About Guardian E-Lift
What types of pallets and containers work with this lift?
The E-Lift is designed for open bottom pallets, skids, containers, and wire baskets. The ground entry design eliminates loading ramps.
What safety features are included with the lift?
The E-Lift includes aluminum perimeter safety bar, scissor gap clearances, check valves, and meets both ANSI and EU standards.
What power options are available for installation requirements?
Standard configuration includes 115V single phase power. 230/460V three phase options are also available for various facilities.
How is the lift controlled for safe operation?
The E-Lift features low-tension 24V control box with up-down buttons and electric circuit reset. Foot control options are available.
