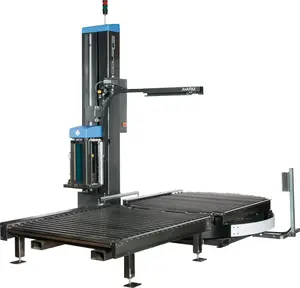

Main view of 3300-A Conveyorized A-Arm Automatic Pallet Wrapper
Thumbnail of 3300-A Pallet Wrapper

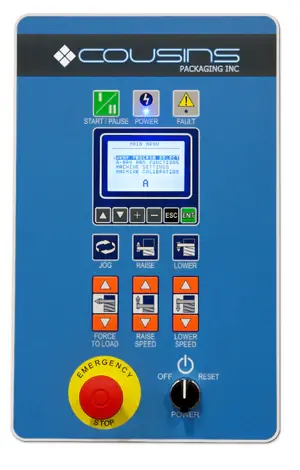

Control Panel

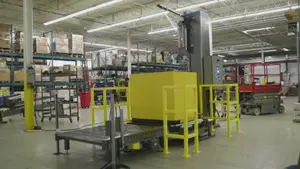

Machine in Operation

3300-A Conveyorized A-Arm Automatic Pallet Wrapper

Fully automatic conveyorized system for 1-35 loads per hour
All electric - no pneumatics required
Handles loads up to 4,000 lbs dynamic / 12,000 lbs static
Main view of 3300-A Conveyorized A-Arm Automatic Pallet Wrapper
Thumbnail of 3300-A Pallet Wrapper
Control Panel
Machine in Operation
Pricing Available Contact for Quote
North America Made
30-40 Loads/Hour
Professional Grade Pallet Wrapper

Complete Technical Specifications

Comprehensive technical specifications for the 3300-A Conveyorized A-Arm Automatic Pallet Wrapper, designed for high-volume automated pallet wrapping operations.

PRODUCT SPECIFICATION
TECHNICAL DETAILS
Production Speed
1-35 loads per hour
Maximum Load Weight
4,000 lbs dynamic – 12,000 lbs static
Maximum Load Size
48″ W x 48″ L (68″ max. load diagonal) x 70″ H
Minimum Load Size
40" W x 40" L x 24" H (57" diagonal)
Turntable Diameter
72″ diameter 3/8″ thick laser-cut steel plate
Turntable Speed
3-16 RPM rotational speed with soft start
Pre-stretch Capability
33% to 313% fixed stretch capability
Conveyor Speed
Variable up to 30 FPM with electronic soft start
Electrical Input
115 Volts 1 Phase 60 Hz 20 Amps
Pass-line Height
16-1/2″ from floor to top of rollers
Control System
PANASONIC PLC with Touchscreen Operator Interface
Manufacturing Origin
🇨🇦 North America

Why Choose the 3300-A Conveyorized A-Arm Wrapper

Experience superior performance with our North American-made automatic pallet wrapper, designed specifically for high-volume operations where efficiency and reliability are essential.

Fully Automatic Operation

Completely automated conveyorized system that can handle 1-35 loads per hour with minimal operator intervention.

All Electric Design

No pneumatics required - eliminates the need for air compressors and reduces maintenance requirements while improving reliability.

Heavy Duty Capacity

Handles loads up to 4,000 lbs dynamic and 12,000 lbs static with maximum dimensions of 48″ x 48″ x 70″ H.

Advanced A-Arm Technology

Patented A-Arm film cut and hold device starts and ends wrapping at the top of the load for superior load stabilization.

Smart Safety Features

Automatic load scanning safety feature detects uneven loads and adjusts A-Arm height to clear obstructions automatically.

Advanced Control System

PANASONIC PLC with touchscreen interface provides precise control over wrap patterns, film tension, and operational parameters.

Your Questions About the 3300-A Pallet Wrapper

What makes the A-Arm design better than traditional film clamps?
The patented A-Arm system starts and ends the wrap at the top of the load, providing better load stabilization and placing the film tail at the top instead of the bottom. There's no turntable film clamp that can be damaged by debris or operator error, making maintenance easier.
How does the conveyorized system integrate with existing production lines?
The 3300-A is designed to integrate with existing conveyor layouts using interface relays/logic for in-line operation, or can operate as an off-line standalone system with wireless remote control.
What are the film pre-stretch capabilities?
The Super Rapid Thread II film carriage provides 33% to 313% fixed stretch capability with variable pre-stretch ratio using easy sprocket changes for optimal film usage and cost savings.
What safety features are included?
Multiple safety features include automatic load scanning, A-Arm anti-fall device, carriage descent obstruction shut-off, emergency stop buttons, and optional safety fence packages and light curtains.
What warranty and support is provided?
Cousins Packaging provides comprehensive warranty coverage and technical support for all machines. Pre-stretch rollers come with a lifetime warranty, and starter spare parts kits are available.
