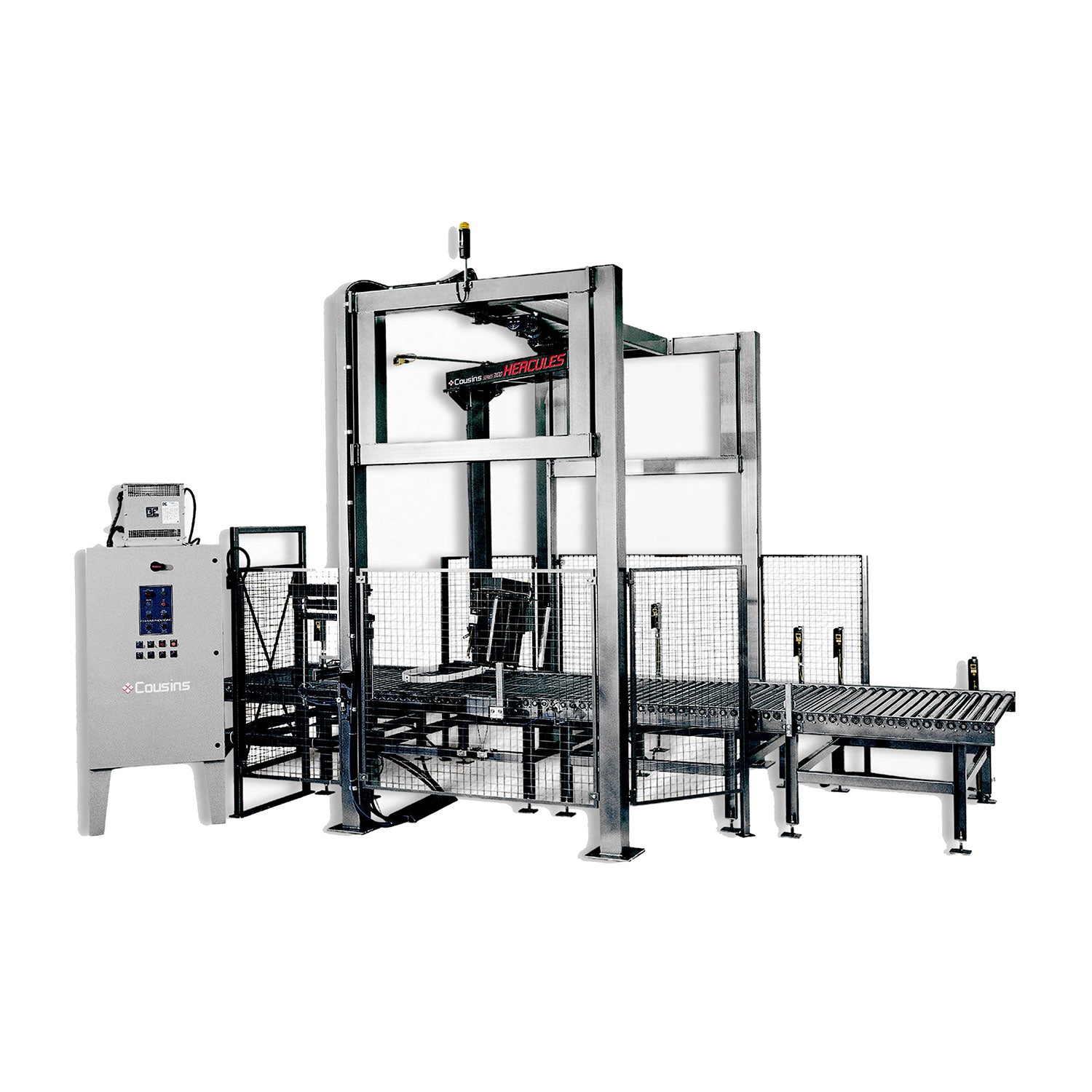

7100-95-OHA Conveyorized Automatic Pallet Wrapper
Complete System Specifications
Detailed technical specifications for the 7100-95-OHA conveyorized automatic pallet wrapper, featuring high-speed production capabilities with comprehensive safety systems.
Why Choose the 7100-95-OHA?
Experience unmatched packaging automation with advanced technology that delivers up to 95 loads per hour while maintaining superior safety and consistent wrap quality.
High-Speed Production
Achieve up to 95 loads per hour with automated conveyor operation that keeps your production line moving without bottlenecks.
Advanced Safety Systems
Multiple safety features including wire mesh barriers, emergency stops, operator access gates with interlocks, and obstruction sensors protect your workforce.
Proven Control Technology
Allen-Bradley CompactLogix PLC with PanelView 600 Plus color touchscreen provides reliable operation, diagnostic messaging, and intuitive control.
Superior Film Technology
Super Rapid Thread II system with lifetime warranty on pre-stretch rollers delivers consistent wrap quality and reduces film waste through precise stretch control.
Complete Automation
Pneumatically actuated film clamp, cut/wiper arm, and impulse hot wire cutting eliminate manual intervention and ensure consistent results.
Flexible Configuration
Extensive options including conveyor modifications, height extensions, diagonal extensions, and specialized devices adapt the system to your specific requirements.
Frequently Asked Questions About 7100-95-OHA
What are the power requirements for this system?
The system requires 230V or 460V, 3-phase, 60Hz electrical service at 30 Amps. Other voltages are available - consult factory for specifics.
How does the automatic load detection work?
The system uses a triple beam auto load height sensing photo-eye that can detect both dark and shiny loads, automatically adjusting wrap parameters accordingly.
What safety features are included?
Comprehensive safety systems include wire mesh barriers around the wrap zone, operator access gates with safety interlocks, emergency stop buttons, rotary arm sensors.
Can the system be customized for different load sizes?
Yes, options include frame height extensions for loads up to 110" tall, diagonal frame extensions for loads up to 104" diagonal, and various conveyor modifications.
Get Technical Resources & Updates
Stay informed about new packaging technologies, installation guides, and maintenance tips directly from our automation engineering team.
Technical Documentation & Resources
Access comprehensive technical documentation, installation guides, and video resources for your 7100-95-OHA pallet wrapper system configuration.
