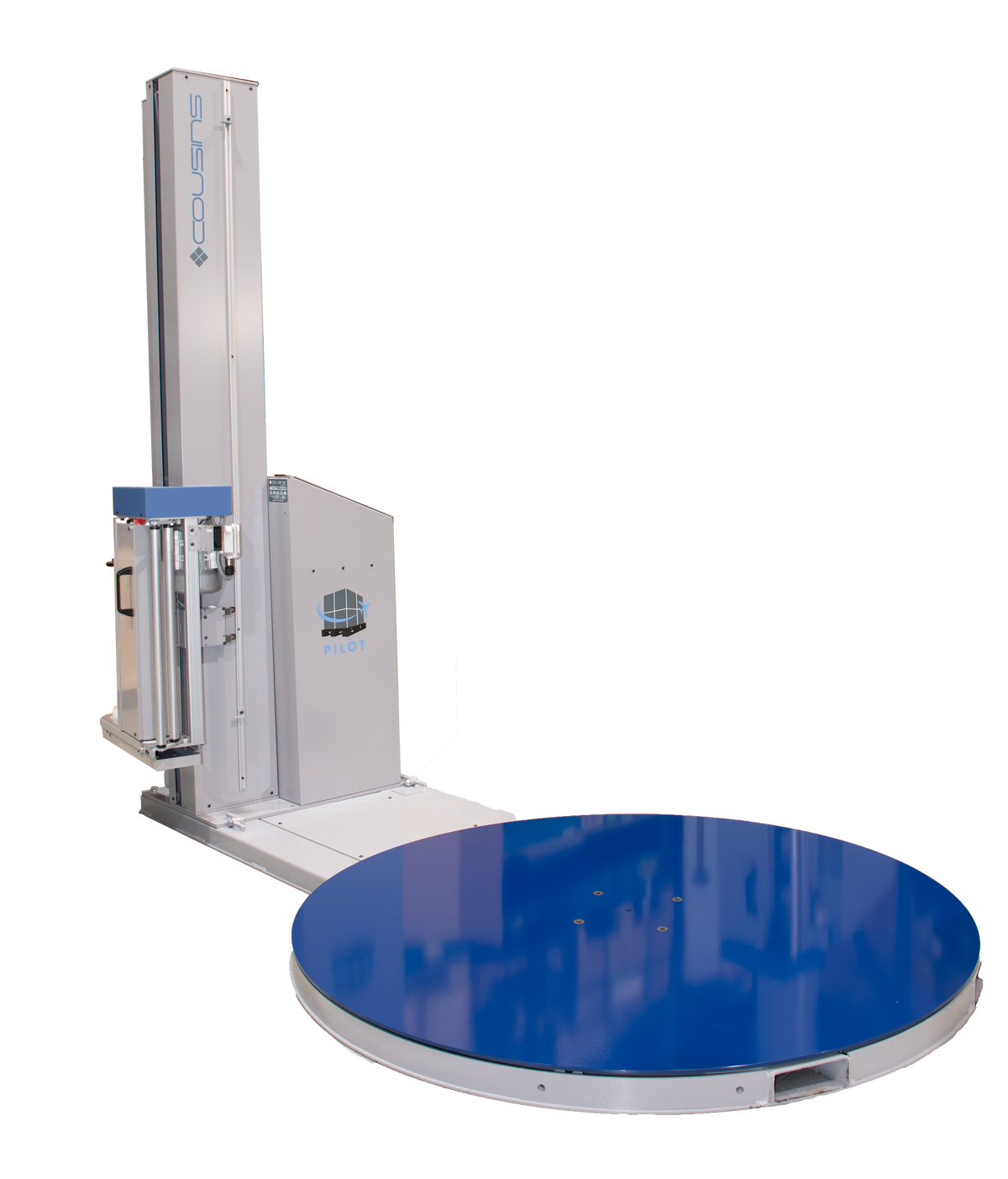

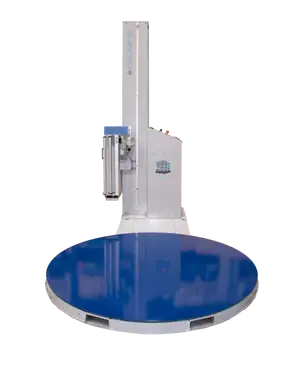

Main view of Pilot Pallet Wrap Machine
Left angle view of Pilot Pallet Wrap Machine
Front angle view of Pilot Pallet Wrap Machine
Right angle view of Pilot Pallet Wrap Machine

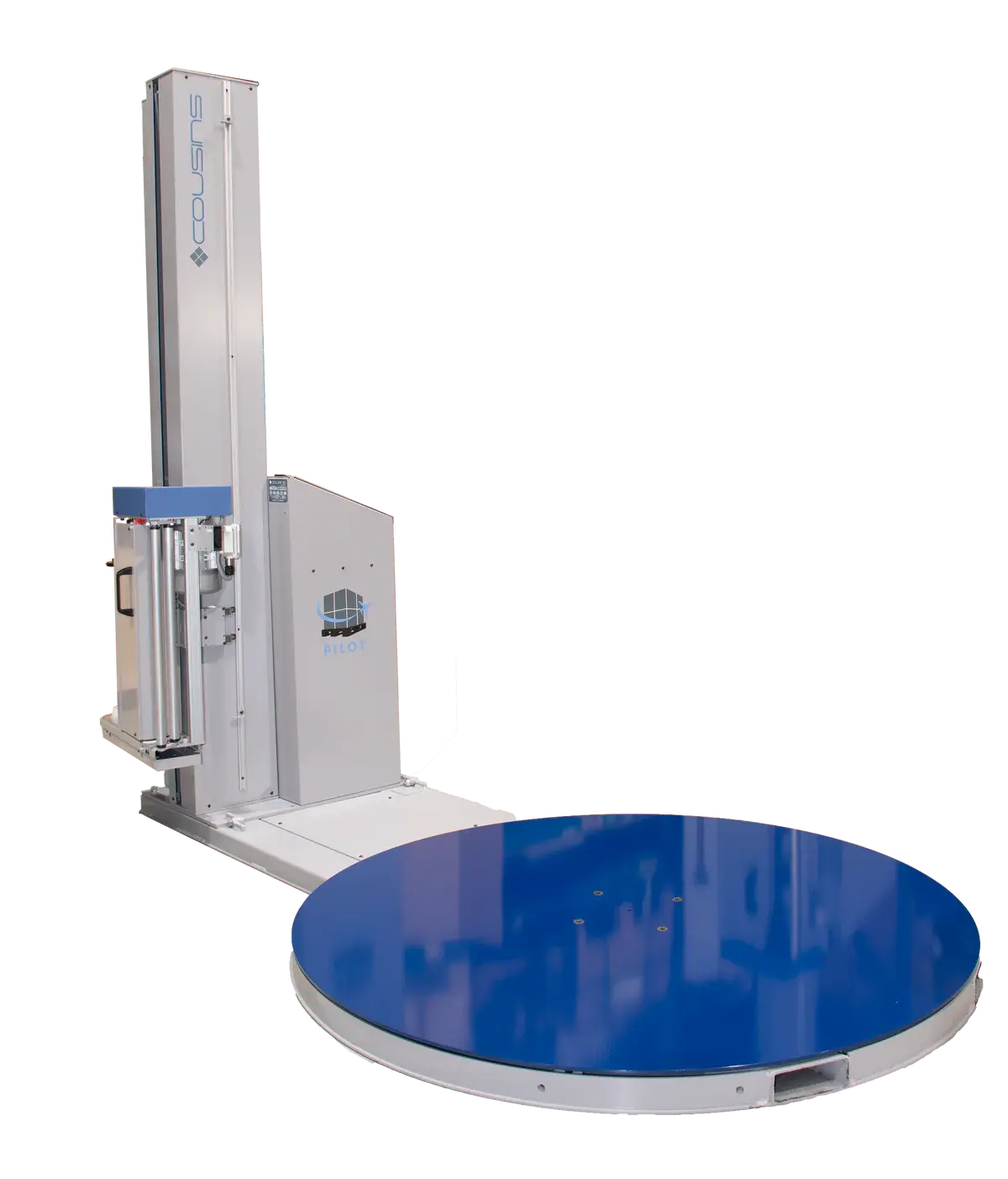

Pilot Pallet Wrap Machine

20 loads per hour throughput for efficient operations
Maximum load weight: 4,000 lbs dynamic – 12,000 lbs static
57" diameter laser-cut steel turntable with maintenance-free roller bearing support
Main view of Pilot Pallet Wrap Machine
Left angle view of Pilot Pallet Wrap Machine
Front angle view of Pilot Pallet Wrap Machine
Right angle view of Pilot Pallet Wrap Machine
Pricing Available Contact for Quote
North America Made
30-40 Loads/Hour
Professional Grade Pallet Wrapping Equipment

Complete Technical Specifications

Comprehensive technical specifications for the Cousins Pilot Pallet Wrap Machine, designed for efficient and reliable pallet wrapping operations.

PRODUCT SPECIFICATION
TECHNICAL DETAILS
Production Speed
20 loads per hour throughout
Load Capacity
4,000 lbs dynamic – 12,000 lbs static
Maximum Load Size
50" x 50" (71" diagonal) x 80" H plus up to 4" top film overlap
Turntable Diameter
57" laser-cut steel plate with surround deck protection
Turntable Height
2.75" from floor
Rotational Speed
Between 3 and 12 RPM with soft start acceleration
Film Carriage Capacity
20" capacity pre-stretch film carriage
Pre-stretch Capability
200% fixed stretch capability
Electrical Input
115 Volts 1 Phase 60 Hz 15 Amps
Motor Power
1/2 HP AC variable speed motors
Control System
Electronic controls with LCD operator interface
Manufacturing Origin
🇨🇦 North America

Why Choose Cousins Pilot Pallet Wrap Machine

Experience superior performance with our North American-made pallet wrapping equipment, designed for efficiency, reliability, and ease of use in professional packaging operations.

High Throughput

Process up to 20 loads per hour with consistent reliability, maximizing your operational efficiency and productivity.

Heavy Duty Construction

All structural steel construction with powder coated finish, designed to handle up to 4,000 lbs dynamic and 12,000 lbs static loads.

Advanced Controls

Electronic controls with LCD interface, A-B-C wrap programs, password protection, and fully customizable wrapping parameters.

Maintenance Free

Roller bearing support turntable requires minimal maintenance, reducing downtime and operational costs over the machine's lifetime.

200% Pre-stretch

Advanced pre-stretch capability reduces film consumption while maintaining superior load containment and stability.

North American Made

Proudly manufactured in North America with strict quality control standards and local support for parts and service.

Your Questions About Cousins Pilot Pallet Wrap Machine

What makes the Pilot different from other pallet wrapping machines?
The Cousins Pilot features our new platform strategy with streamlined alloy mast and carriage, making shipping and assembly easier while using less materials and reducing our carbon footprint with more sustainable materials.
What is the maximum load size this machine can handle?
The Pilot can safely handle loads up to 50" x 50" (71" diagonal) x 80" H plus up to 4" top film overlap, with a maximum weight of 4,000 lbs dynamic or 12,000 lbs static.
How many loads per hour can the Pilot process?
The Pilot can process up to 20 loads per hour throughout. Process rates will vary with load size, number of wraps, and forklift load/unload time.
What electrical requirements does the machine have?
The Pilot requires 115 Volts 1 Phase 60 Hz 15 Amps electrical input, making it suitable for most standard electrical installations.
What warranty and support is available?
Cousins Packaging provides comprehensive warranty coverage and technical support. Contact us at 1-888-209-4344 for specific warranty details and support options.
