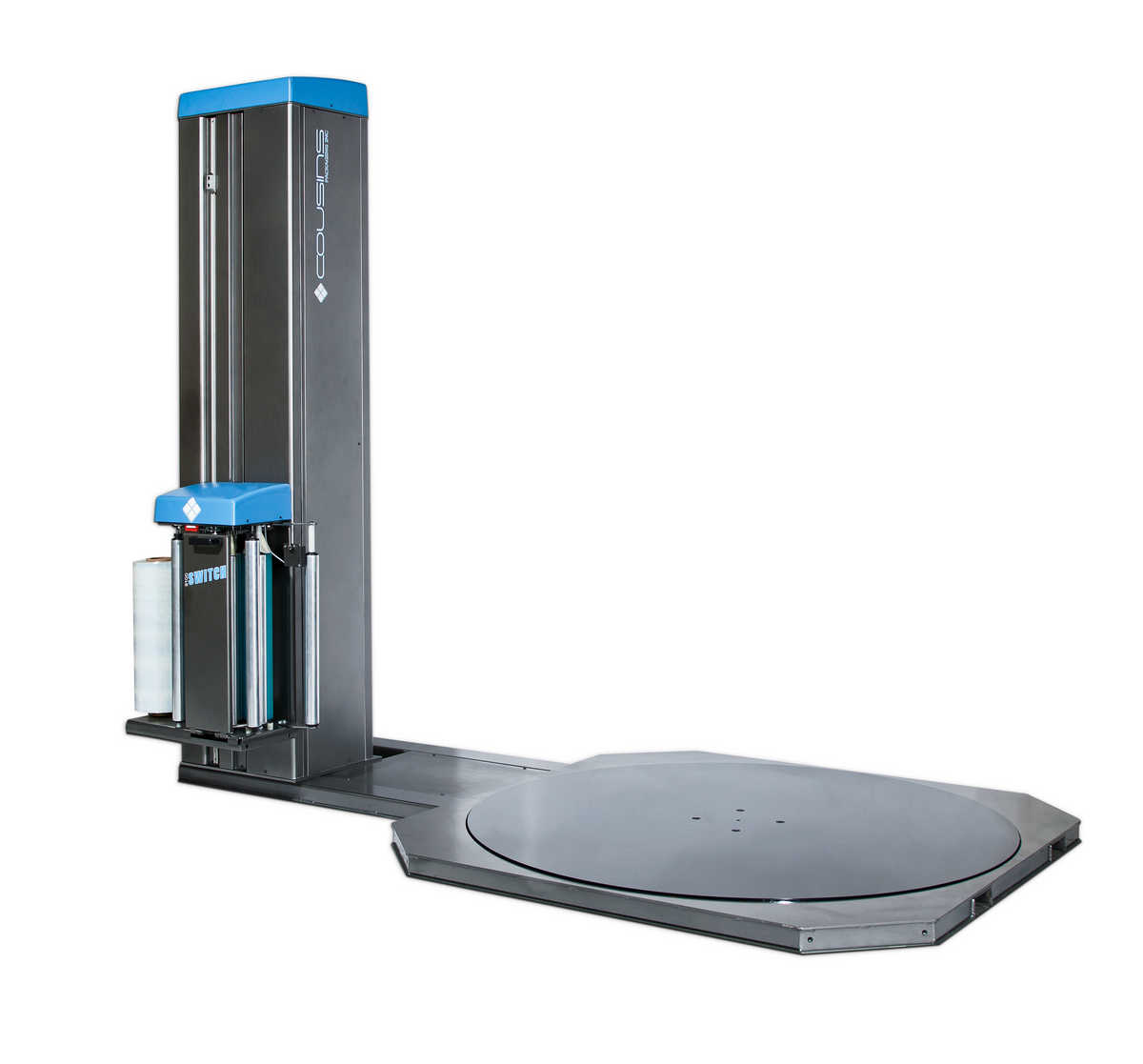

Main view of SWITCH Low Profile Pallet Wrapper
Thumbnail of SWITCH Low Profile Pallet Wrapper

SWITCH Low Profile Pallet Wrapper

Best in its class with standard features such as a large load wrapping capacity
All AC drives with HMI operator interface and diagnostic information
35 loads per hour throughout capacity with 3 separate wrap patterns
Main view of SWITCH Low Profile Pallet Wrapper
Thumbnail of SWITCH Low Profile Pallet Wrapper
Pricing Available Contact for Quote
North America Made
30-40 Loads/Hour
Professional Grade Pallet Wrapping Equipment

Complete Technical Specifications

Comprehensive technical specifications for SWITCH Low Profile Pallet Wrapper, designed for efficient pallet wrapping in industrial environments.

PRODUCT SPECIFICATION
TECHNICAL DETAILS
Production Speed
35 loads per hour throughout (Single Turntable)
Maximum Load Weight
4,500 lbs dynamic – 10,000 lbs static
Maximum Load Size (Clear Tower)
67″ W x 67″ L (96″ load diagonal)
Maximum Load Size (Inboard)
46″ W x 46″ L (65″ load diagonal)
Maximum Load Height
87″ H
Turntable Diameter
65″ Diameter laser-cut steel plate
Turntable Height
2.75″ from floor
Rotational Speed
3-12 RPM with soft start acceleration
Pre-stretch Capability
33% to 313% fixed stretch capability
Electrical Input
115 Volts 1 Phase 60 Hz 15 Amps
Manufacturing Origin
🇨🇦 North America

Why Choose SWITCH Low Profile Pallet Wrapper

Experience superior performance with our North American-made pallet wrapper, designed specifically for high-volume operations where efficiency and reliability are essential.

High Capacity

Handle loads up to 4,500 lbs dynamic weight with 67″ x 67″ maximum size capability for versatile packaging solutions.

AC Drive System

All AC drives with HMI operator interface providing diagnostic information and reliable operation for consistent performance.

Fast Production

Process up to 35 loads per hour with 3 separate wrap patterns and programmable controls for optimized efficiency.

Pre-stretch Film System

33% to 313% stretch capability with Super Rapid Thread II™ film carriage for maximum film efficiency and cost savings.

Safety Features

Emergency stop, obstruction safety shut-off, and automatic power cut-off switches ensure operator safety during operation.

Low Maintenance

Maintenance-free 48 roller bearing support system and lifetime warranty on pre-stretch rollers minimize downtime.

Your Questions About SWITCH Low Profile Pallet Wrapper

What is the production capacity of this pallet wrapper?
The SWITCH Low Profile can process up to 35 loads per hour with a single turntable. Process rates will vary with load size, number of wraps, and forklift load/unload time.
What are the maximum load dimensions this wrapper can handle?
Maximum load weight is 4,500 lbs dynamic (10,000 lbs static), with sizes up to 67″ W x 67″ L to clear the tower and maximum height of 87″.
What makes this wrapper "low profile"?
The turntable height is only 2.75″ from the floor, making it easier for forklifts and pallet jacks to load pallets without needing ramps in most cases.
What electrical requirements does this machine have?
The SWITCH Low Profile requires 115 Volts 1 Phase 60 Hz 15 Amps, making it suitable for standard electrical installations.
What optional features are available?
Popular options include built-in scale packages, dual turntables, tower extensions for taller loads, cold weather packages, and pallet lock roping devices for enhanced load security.
