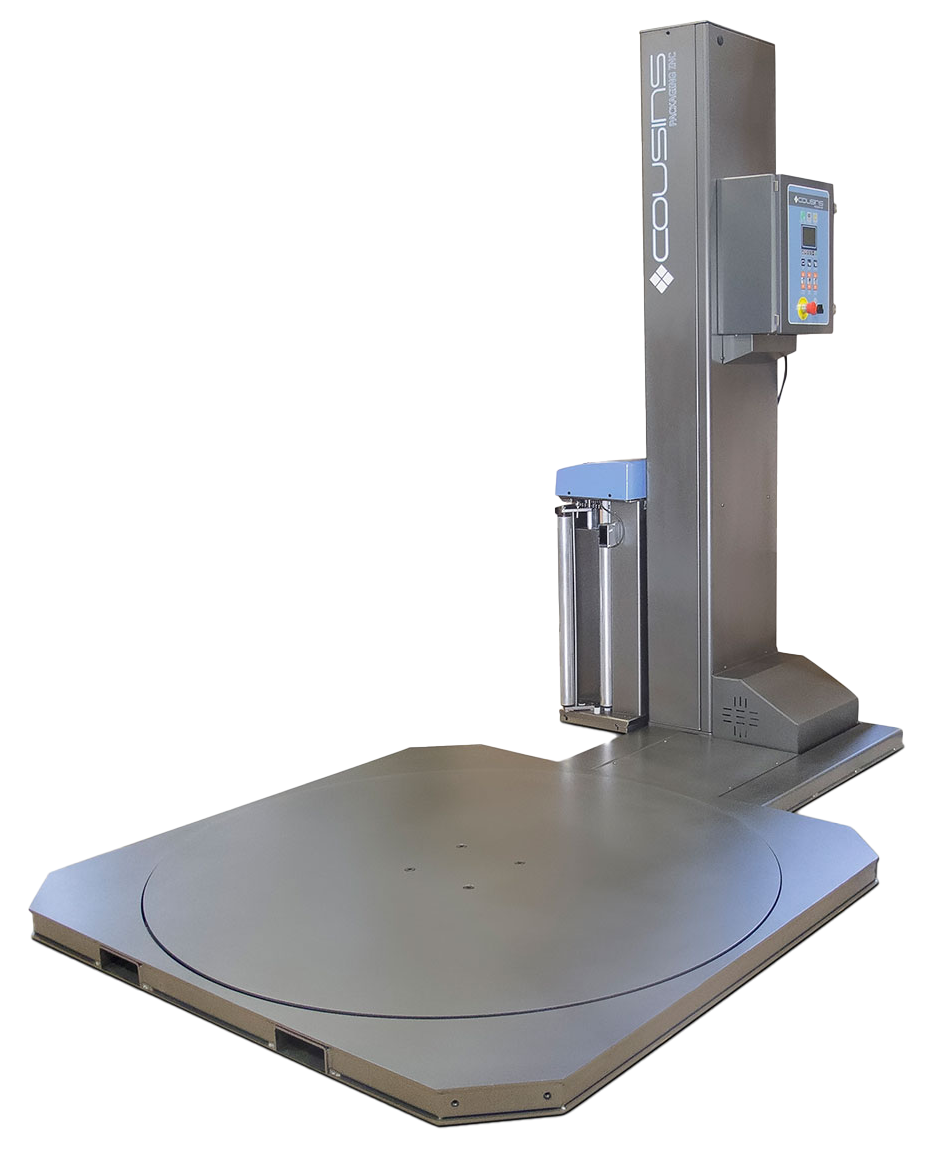

2100-SRT Low Profile Pallet Wrapper

Technical Specifications

Complete Technical Specifications

Detailed specifications for the 2100-SRT Low Profile Semi-Automatic Pallet Wrapper with all standard features and capabilities.

SPECIFICATION

VALUE

Production Speed

35 loads per hour

Load Capacity

4,000 lbs dynamic / 10,000 lbs static

Maximum Load Size

50" x 50" x 82" H (71" diagonal)

Turntable

57" diameter with 42 roller bearings

Turntable Height

2.75" from floor

Film System

Super Rapid Thread II™ 20" pre-stretch carriage

Film Pre-stretch

33% to 313% capability

Power Requirements

115V, 1 Phase, 20 Amps

Control System

LCD operator interface with A-B-C programs

Country of Origin

🇺🇸 United States

Product Benefits

Why the 2100-SRT Outperforms the Competition

Creating maximum impact in minimum space with turntable excellence and low-profile design - perfect for space-constrained operations with heavy-duty performance.

Advanced Turntable Technology

57" diameter laser-cut steel plate with maintenance-free 42 roller bearing system for smooth, reliable operation.

Superior Film System

Super Rapid Thread II™ 20" pre-stretch carriage with 33% to 313% stretch capability and lifetime warranty on rollers.

Heavy-Duty Performance

4,000 lbs dynamic / 10,000 lbs static load capacity with low 2.75" turntable height for easy forklift loading.

Low-Profile Design

Low-ceiling compatible design fits space-constrained operations without costly facility modifications.

Intelligent Control System

LCD operator interface with A-B-C programmable wrap cycles and triple beam auto load height sensing.

Forklift Portable Build

All structural steel construction with integrated lifting tubes and electro-static powder coated finish.

Get Your Custom Quote

Frequently Asked Questions

What is the production capacity of the 2100-SRT?

The 2100-SRT can wrap up to 35 loads per hour throughout. However, actual process rates will vary depending on load size, number of wraps required, and forklift load/unload time.

What are the maximum load dimensions this wrapper can handle?

The standard configuration handles loads up to 50" W x 50" L (71" max diagonal) x 82" H. The maximum load capacity is 4,000 lbs dynamic / 10,000 lbs static. The 57" diameter turntable accommodates standard and large pallets.

What makes the Super Rapid Thread II™ film system special?

The Super Rapid Thread II™ system features a 20" pre-stretch carriage with special film threading device that orientates the sticky side of the film against the rollers and load interior. It offers 33% to 313% stretch capability with lifetime warranty on pre-stretch rollers.

What electrical requirements does the machine have?

The 2100-SRT requires 115 Volts, 1 Phase, and draws 20 Amps. The low-profile design allows for easy installation without facility modifications and is forklift portable for flexible positioning.

What optional features and packages are available?

Available options include scale integration, film splitter systems, pallet lock roping device, tower extensions up to 110" wrap height, base extensions, environmental packages for cold weather and freezer applications, and dual turntable configurations.
