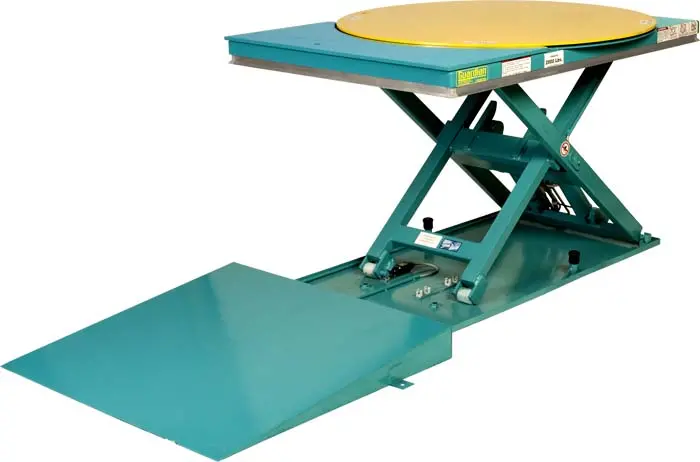

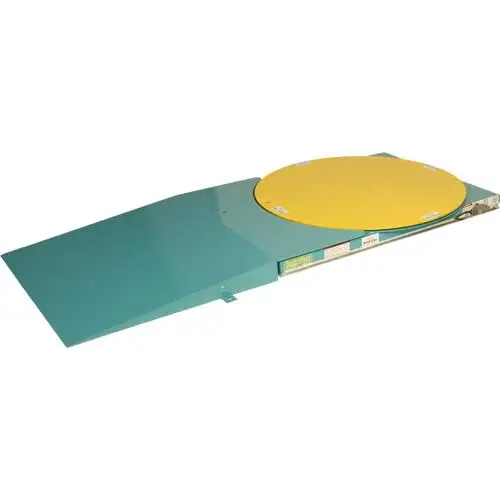

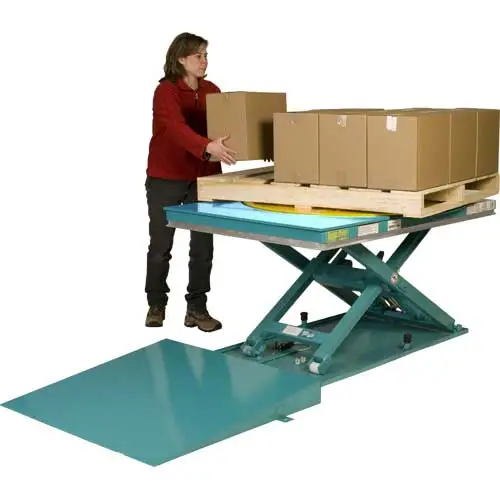

Lift-N-Spin in raised position demonstration showing full rotation capability Lowered position for pallet truck loading with auto-transition plate Loading sequence with pallet showing smooth operational transitions Palletizing operation with boxes demonstrating ergonomic work positioning
Thumbnail of raised position demonstration
Thumbnail of lowered loading position
Thumbnail of loading sequence view
Thumbnail of palletizing operation view
ANSI Certified
European Grade
CE Marked

Guardian Lift-N-Spin

Ultra-low 4.25" profile with exclusive auto-transition plate
Complete 360° rotating platform with 2,000 lb capacity
Remote power unit operation for flexible positioning
Lift-N-Spin in raised position demonstration showing full rotation capability Lowered position for pallet truck loading with auto-transition plate Loading sequence with pallet showing smooth operational transitions Palletizing operation with boxes demonstrating ergonomic work positioning
Thumbnail of raised position demonstration
Thumbnail of lowered loading position
Thumbnail of loading sequence view
Thumbnail of palletizing operation view
Price Pricing Available on Request
Free Freight Available
30-Day Returns
Revolutionary Rotating Lift Material Handling Solutions
Selling Only Trusted Industry Brands:

Trusted by Hundreds of Companies Globally

Precision Engineering Specifications

Detailed technical specifications for our revolutionary Guardian Lift-N-Spin rotating lift tables, featuring ultra-low profile loading with exclusive auto-transition technology.

COMPONENT SPECIFICATION
TECHNICAL DETAILS
Model Number
LPBL-20-2-LS with auto-transition plate
Lifting Capacity
2,000 lbs maximum weight rating
Vertical Travel
30.75" total lifting distance
Height Range
4.25" lowered to 35" raised
Platform Size
45" diameter rotating surface
Base Frame
29.5" x 52.75" footprint
Lifting Speed
18 seconds complete cycle time
Motor Power
1 HP remote power unit
Standard Voltage
115V single phase, 20 amp circuit
Country of Origin
🇺🇸 United States

Six Reasons Choose Guardian Lift-N-Spin

Experience superior material handling with revolutionary rotating lift technology that delivers reliable performance while eliminating the need to walk around pallets completely.

Ultra-Low Profile Loading

At just 4.25" lowered height, accommodates both manual and electric pallet trucks with exclusive auto-transition plate creating perfectly smooth loading surfaces.

Auto-Transition Technology

Patented auto-transition plate automatically adjusts when lowered for smooth pallet loading, then lowers when lifted to enable full rotation capabilities.

Ergonomic Work Positioning

The 35" raised height positions materials at ideal working level while rotating platform eliminates walking around pallets, reducing fatigue significantly.

Remote Power Operation

Separate 1HP power unit with 8-foot hoses allows flexible positioning while delivering quiet, efficient performance with controlled lowering speed.

Comprehensive Safety Features

Aluminum perimeter safety bar, upper limit switches, mechanical maintenance blocks, and compliance with both ANSI and European safety standards.

Versatile Configuration Options

Choose from multiple accessories including ramps, square top platforms, swing gates, and specialized coatings to customize your system completely.

Get Custom Quote

Frequently Asked Questions About Lift-N-Spin

Can the Lift-N-Spin handle standard pallet trucks?
Yes, the 4.25" lowered height accommodates both manual and electric pallet trucks. Optional ramps are available for additional loading flexibility and even smoother transitions.
What power requirements does the unit have exactly?
Standard units operate on 115V single phase power with a 20 amp circuit requirement. Optional 230/460V three-phase power is available for industrial applications.
How does the auto-transition plate work exactly?
When fully lowered, the plate automatically raises to create a smooth loading surface. Once lifted 1/4", it automatically lowers for free rotation, creating seamless functionality.
What safety features are included with the system?
The Lift-N-Spin includes aluminum perimeter safety bar, upper limit switches, mechanical maintenance blocks, low-voltage controls, and compliance with ANSI and European safety standards.
Is maintenance complicated for optimal performance operation?
No, the unit features self-lubricating bushings at pivot points and includes mechanical blocks for safe maintenance operations. The single-acting cylinders include drainage systems.
