Semi-Stainless Roto-Max SS

Complete Technical Specifications

Detailed engineering specifications for Semi-Stainless Roto-Max SS electric hydraulic work positioners, featuring stainless steel platform with complete rotation capability.

MODEL SPECIFICATIONS

TECHNICAL FEATURES

Model RTMX-25HS-SS

2,500 lbs capacity with 10 second lift

Model RTMX-30-SS

3,000 lbs capacity with 14 second lift

Model RTMX-35-SS

3,500 lbs capacity with 19 second lift

Platform Diameter

43 inches with 360-degree rotation

Vertical Travel Range

26 inches (6.5" to 32.5" height)

Base Frame Size

30" x 45" stainless steel construction

Motor Specifications

1.5HP (115V) / 2HP (230/460V) options

Hydraulic System

Hard chrome plated cylinder with Teflon seals

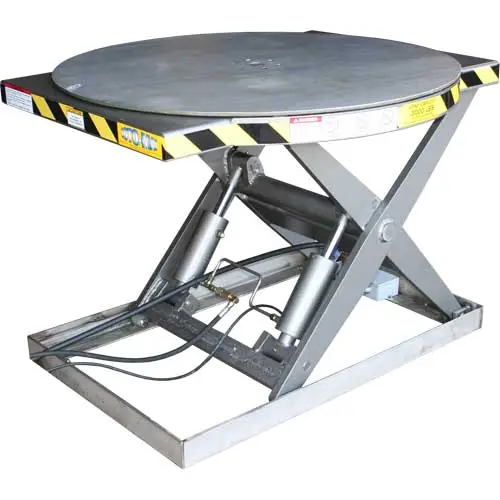

Control Features

NEMA constant pressure with magnetic backing

Country of Origin

🇺🇸 United States

Six Reasons Why Roto-Max SS Leads the Industry

Experience operator-focused design and precision positioning with stainless steel durability that delivers reliable performance for demanding industrial applications where hygiene matters.

Operator-Centric Design

Purpose-built to let operators determine optimal work positioning, reducing strain and increasing productivity through intuitive controls and smooth operation.

360° Rotation Freedom

Heavy-duty cam rollers and exclusive Roto-Bearings provide unlimited positioning options, allowing operators to access any angle without moving entire.

Stainless Steel Durability

Semi-stainless construction features stainless steel top, base frame, and bearings for superior corrosion resistance in demanding industrial environments requiring hygiene.

Easy Maintenance Access

Zerk fittings on all pivot points, trapped 'Lift-Lok' rollers, and accessible components ensure longer service life with minimal downtime requirements.

Precise Load Control

Teflon seals reduce friction for faster, smoother operation while the fifteen-minute intermittent duty motor handles medium to high-cycle applications reliably.

Water-Resistant Construction

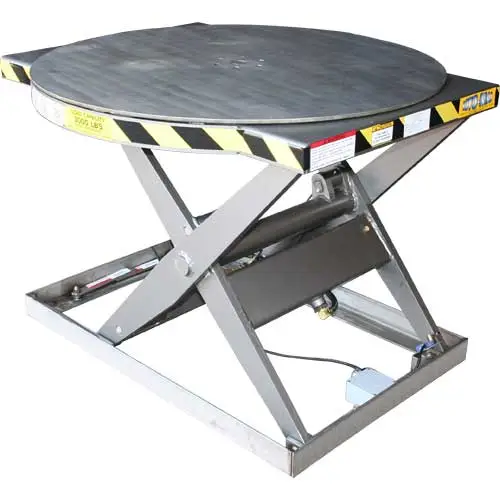

Water-resistant remote power unit and waterproof limit switches make this ideal for washdown environments and sanitary applications requiring frequent cleaning.

Get Your Custom Quote

Frequently Asked Questions About Roto-Max SS

What makes this semi-stainless versus fully stainless steel?

The Semi-Stainless Roto-Max SS features stainless steel in critical areas - the rotating top, base frame, and bearings - while using Steel-It coated scissor arms for cost-effective corrosion resistance.

How does the three-hundred sixty-degree rotation mechanism function effectively?

The platform uses heavy-duty cam rollers and exclusive Roto-Bearings to provide smooth, unlimited rotation. Operators can easily position loads at any angle without repositioning the lift table.

Which industries benefit most from this specialized lift table?

Food processing, pharmaceuticals, packaging, and any application requiring sanitary conditions, precise positioning, or corrosion resistance. The stainless steel construction makes it ideal for washdown environments.

What maintenance does the Roto-Max SS require for operation?

Regular greasing through accessible zerk fittings and periodic hydraulic oil changes. The trapped roller system allows easy maintenance access when lowered, and all components are designed for long service life.

How do I choose between the three capacity models available?

Consider your maximum load weight: RTMX-25HS-SS for up to 2,500 lbs, RTMX-30-SS for 3,000 lbs, or RTMX-35-SS for 3,500 lbs. Higher capacity models have longer cycle times and may require different voltage.
