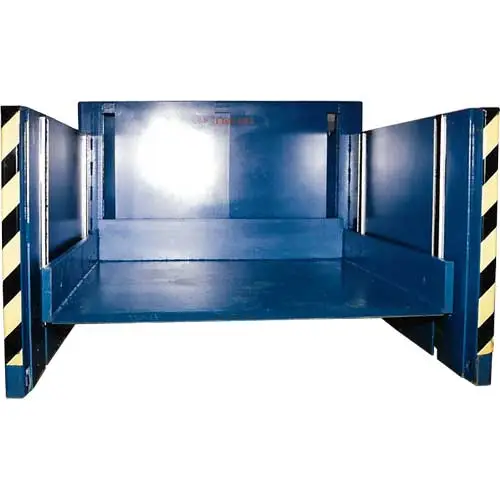

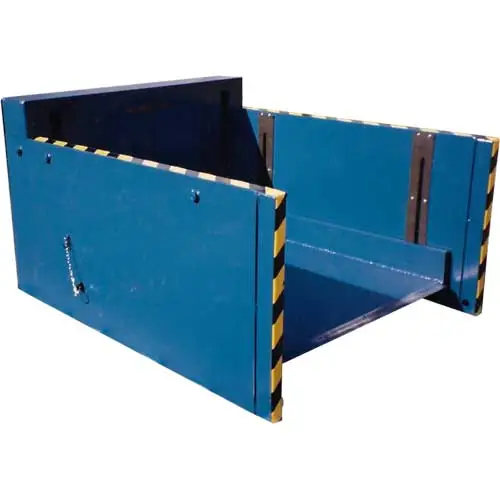

Level Lifter main view showing ultra-low profile design Side view showing low profile design Front view with beveled lip detail
Thumbnail of Level Lifter main view
Thumbnail of side view
Thumbnail of front view
ISO 9001 Certified
Industrial Grade
CE Marked

Ground Entry Level Lifter

Exclusive 4-point lift system for minimal load deflection
Ultra-low 0.5" lowered height vs. conventional 7"+ tables
Photo eye safety system with obstruction detection
Level Lifter main view showing ultra-low profile design Side view showing low profile design Front view with beveled lip detail
Thumbnail of Level Lifter main view
Thumbnail of side view
Thumbnail of front view
Price Pricing Available on Request
Factory Direct
Full Warranty
Professional Grade Ground Entry Lift Solutions
Selling Only Trusted Industry Brands:

Trusted by Hundreds of Companies Globally

Complete Product Specifications

Detailed model comparison and specifications for both LL-24-4450 and LL-30-4450 Level Lifter ground entry lift table configurations.

SPECIFICATION
MODEL COMPARISON
Model Numbers
LL-24-4450 / LL-30-4450
Vertical Travel
23.5" (LL-24) / 29.5" (LL-30)
Lowered Height
Ultra-low 0.5" profile design
Raised Height
24" (LL-24) / 30" (LL-30)
Capacity Options
2,500 / 3,000 / 3,500 / 4,000 lbs
Platform Size
44" x 50" standard size
Overall Dimensions
52" x 66" footprint
Motor Power
1.5HP Triple Duty Motor
Safety Features
Photo eye system & velocity fuse
Country of Origin
🇺🇸 United States Manufacturing

Why Choose the Level Lifter

Experience the revolutionary advantage of ground entry lift technology that eliminates pit installation while providing superior load stability and safety.

Exclusive 4-Point Lift

Patented 4-point lift system provides minimal load deflection, making it ideal for handling unstable loads where maintaining level platform is critical.

Ultra-Low Profile Design

Just 0.5" lowered height compared to 7"+ on conventional lift tables, bringing work to more accessible and ergonomic employee height.

Advanced Safety Features

Integrated photo eye system interrupts lowering when obstructions detected, plus hydraulic velocity fuse and upper limit switches provide protection.

Smooth Entry Access

The 3" beveled platform lip allows seamless entry with hand pallet trucks while narrow 2.5" side walls provide easy loading access.

Portable Flexibility

Locking platform pins convert unit into portable pallet jack support, allowing relocation as your operational needs change over time.

Professional Grade Construction

Built with 0.5" plate steel platform, 1.5HP triple duty motor and industrial-grade hydraulic components for demanding manufacturing environments.

Get Your Custom Quote

Frequently Asked Questions About Level Lifter

What makes the Level Lifter different from conventional lift tables?
The Level Lifter features exclusive 4-point lift system and ultra-low 0.5" profile, compared to 7"+ on conventional tables eliminating pit installation need.
How does the 4-point lift system benefit my operations?
The 4-point system provides minimal load deflection, crucial when handling unstable loads like tall stacks, fragile materials, or perfectly level platform requirements.
What safety features are included?
Standard safety features include photo eye obstruction detection system, hydraulic velocity fuse, upper travel limit switch, and magnetic backed controls.
Can the Level Lifter be moved between work locations?
Yes, portable design includes locking platform pins that convert platform into pallet jack support for easy relocation within facility as operational needs change.
What capacity options are available?
Both LL-24-4450 and LL-30-4450 models offer capacity options of 2,500, 3,000, 3,500, or 4,000 pounds to match your specific load requirements perfectly.
